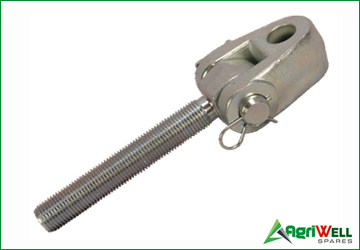

ARTICULATED YOKE ASSEMBLY
Precision agricultural component
ARTICULATED YOKE ASSEMBLY
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications

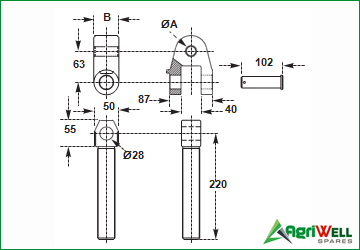

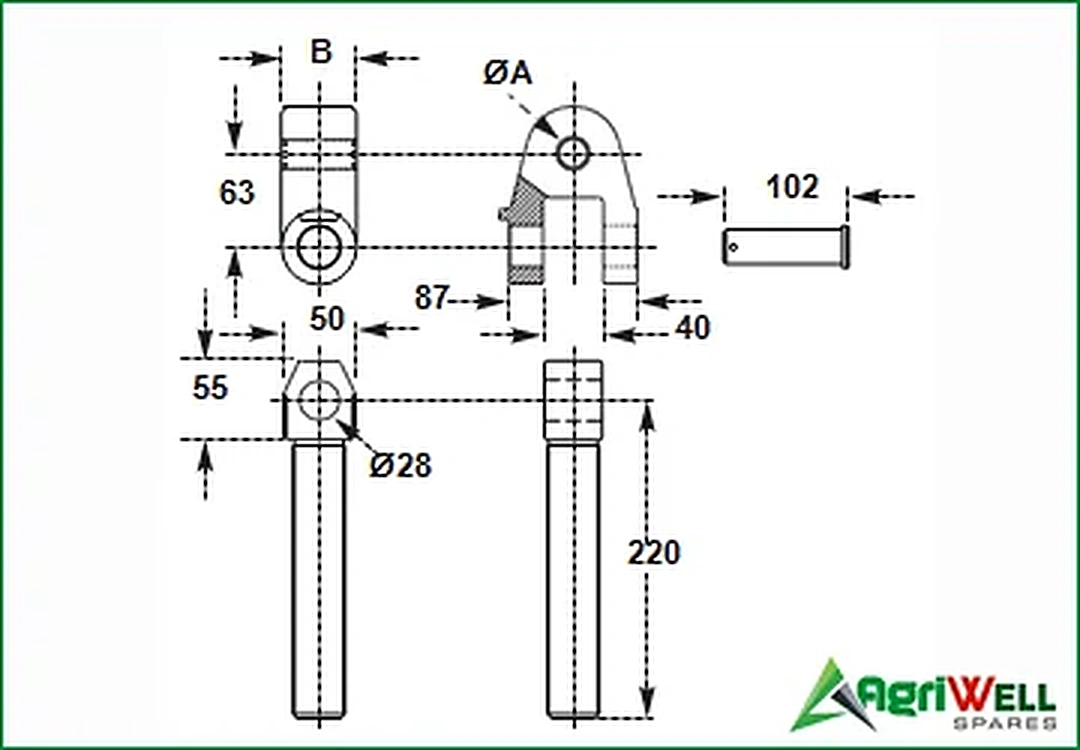

| Part Number | Cat. | Dia. ØA (mm) | Dim. B (mm) | Thread (mm) | Spare Part1 | Spare Part 2 | Ref. Number |
|---|---|---|---|---|---|---|---|
| AYE-R303025 | 2 | 25.4 | 51 | M 30X3 R | AYE-R3030 | AY-2551 | 0ATF002 |
| AYE-L303025 | 2 | 25.4 | 51 | M 30X3 L | AYE-L3030 | AY-2551 | 0ATF006 |
| AYE-R303028 | - | 28.2 | 51 | M 30X3 R | AYE-R3030 | AY-2851 | 0ATF020 |
| AYE-L303028 | - | 28.2 | 51 | M 30X3 L | AYE-L3030 | AY-2851 | 0ATF032 |
| AYE-R303030 | - | 30.2 | 51 | M 30X3 R | AYE-R3030 | AY-3051 | 0ATF022 |
| AYE-L303030 | - | 30.2 | 51 | M 30X3 L | AYE-L3030 | AY-3051 | 0ATF033 |
| AYE-R303032 | 3 | 32 | 51 | M 30X3 R | AYE-R3030 | AY-3251 | 0ATF024 |
| AYE-L303032 | 3 | 32 | 51 | M 30X3 L | AYE-L3030 | AY-3251 | 0ATF034 |
| AYE-R303519 | 1 | 19.2 | 51 | M 30X3.5 R | AYE-R3035 | AY-1951 | 0ATF010 |
| AYE-L303519 | 1 | 19.2 | 51 | M 30X3.5 L | AYE-L3035 | AY-1951 | 0ATF011 |
| AYE-R303520 | - | 20.2 | 51 | M 30X3.5 R | AYE-R3035 | AY-2051 | 0ATF012 |
| AYE-L303520 | - | 20.2 | 51 | M 30X3.5 L | AYE-L3035 | AY-2051 | 0ATF013 |
| AYE-R303522 | - | 22.1 | 51 | M 30X3.5 R | AYE-R3035 | AY-2251 | 0ATF014 |
| AYE-L303522 | - | 22.1 | 51 | M 30X3.5 L | AYE-L3035 | AY-2251 | 0ATF015 |
| AYE-R303525 | 2 | 25.4 | 51 | M 30X3.5 R | AYE-R3035 | AY-2551 | 0ATF005 |
| AYE-L303525 | 2 | 25.4 | 51 | M 30X3.5 L | AYE-L3035 | AY-2551 | 0ATF004 |
| AYE-R363020 | - | 20.2 | 51 | M 36X3 R | AYE-R3630 | AY-2051 | 0ATF029 |
| AYE-L363020 | - | 20.2 | 51 | M 36X3 L | AYE-L3630 | AY-2051 | 0ATF028 |
| AYE-R363022 | - | 22.1 | 51 | M 36X3 R | AYE-R3630 | AY-2251 | 0ATF030 |
| AYE-L363022 | - | 22.1 | 51 | M 36X3 L | AYE-L3630 | AY-2251 | 0ATF031 |
| AYE-R363025 | 2 | 25.4 | 51 | M 36X3 R | AYE-R3630 | AY-2551 | 0ATF001 |
| AYE-L363025 | 2 | 25.4 | 51 | M 36X3 L | AYE-L3630 | AY-2551 | 0ATF009 |
| AYE-R363030 | - | 30.2 | 51 | M 36X3 R | AYE-R3630 | AY-3051 | 0ATF027 |
| AYE-L363030 | - | 30.2 | 51 | M 36X3 L | AYE-L3630 | AY-3051 | 0ATF026 |
| AYE-R363032 | 3 | 32 | 51 | M 36X3 R | AYE-R3630 | AY-3251 | 0ATF003 |
| AYE-L363032 | 3 | 32 | 51 | M 36X3 L | AYE-L3630 | AY-3251 | 0ATF007 |
| AYE-R403025 | 2 | 25.4 | 51 | M 40X3 R | AYE-R4030 | AY-2551 | 0ATF035 |
| AYE-L403025 | 2 | 25.4 | 51 | M 40X3 L | AYE-L4030 | AY-2551 | 0ATF036 |
| AYE-R403032 | 3 | 32 | 51 | M 40X3 R | AYE-R4030 | AY-3251 | 0ATF037 |
| AYE-L403032 | 3 | 32 | 51 | M 40X3 L | AYE-L4030 | AY-3251 | 0ATF038 |
Swipe horizontally to view all specifications →
Technical specifications
Product specifications 2
| Part Number | Dia. ØA (mm) | Dim. B (mm) |
|---|---|---|
| AY-1951 | 19.2 | 51 |
| AY-2051 | 20.2 | 51 |
| AY-2251 | 22.1 | 51 |
| AY-2551 | 25.4 | 51 |
| AY-2851 | 28.2 | 51 |
| AY-3051 | 30.2 | 51 |
| AY-3251 | 32 | 51 |
Swipe horizontally to view all specifications →
Technical specifications
Product specifications 3

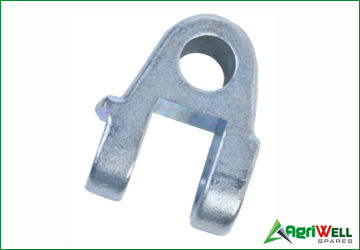

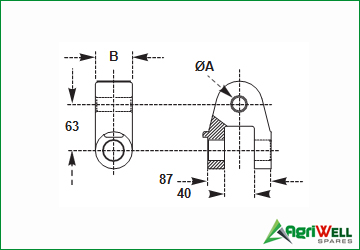

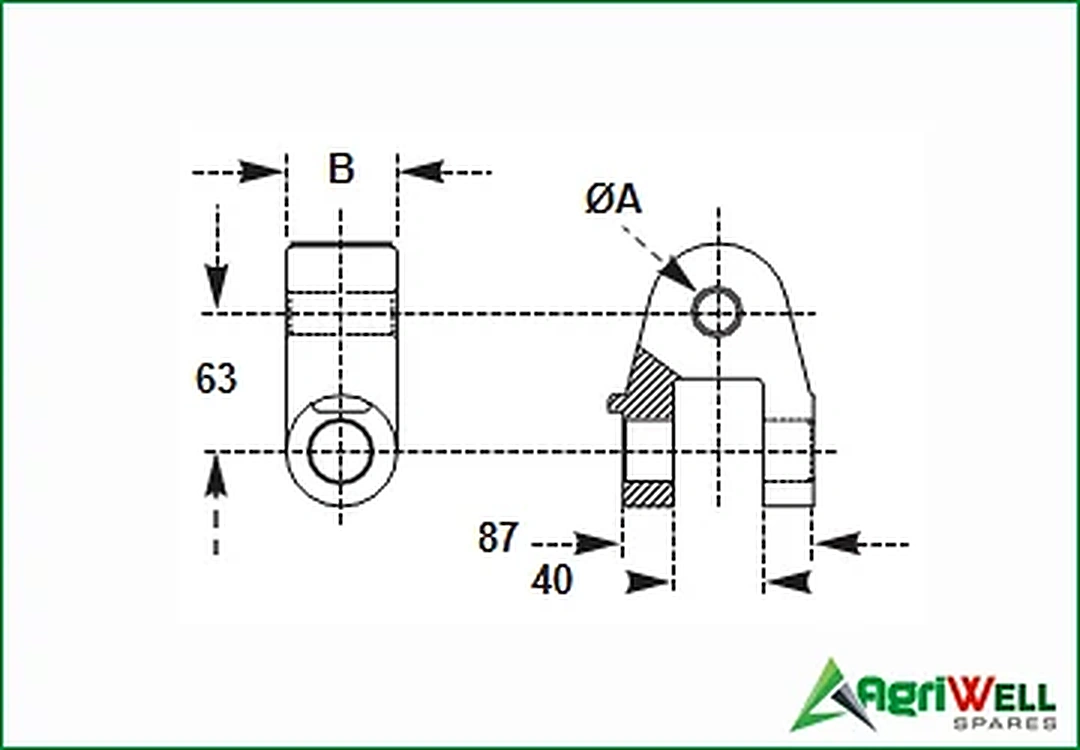

| Part Number | Thread (mm) |
|---|---|
| AYR-R3030 | M 30X3 R |
| AYR-L3030 | M 30X3 L |
| AYE-R3035 | M 30X3.5 R |
| AYE-L3035 | M 30X3.5 L |
| AYE-R3630 | M 36X3 R |
| AYE-L3630 | M 36X3 L |
| AYE-R4030 | M 40X3 R |
| AYE-L4030 | M 40X3 L |
Swipe horizontally to view all specifications →
Technical specifications
Product specifications 4

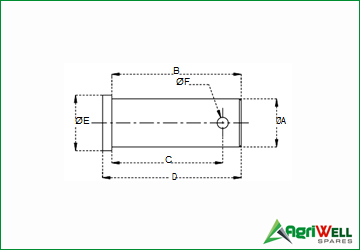

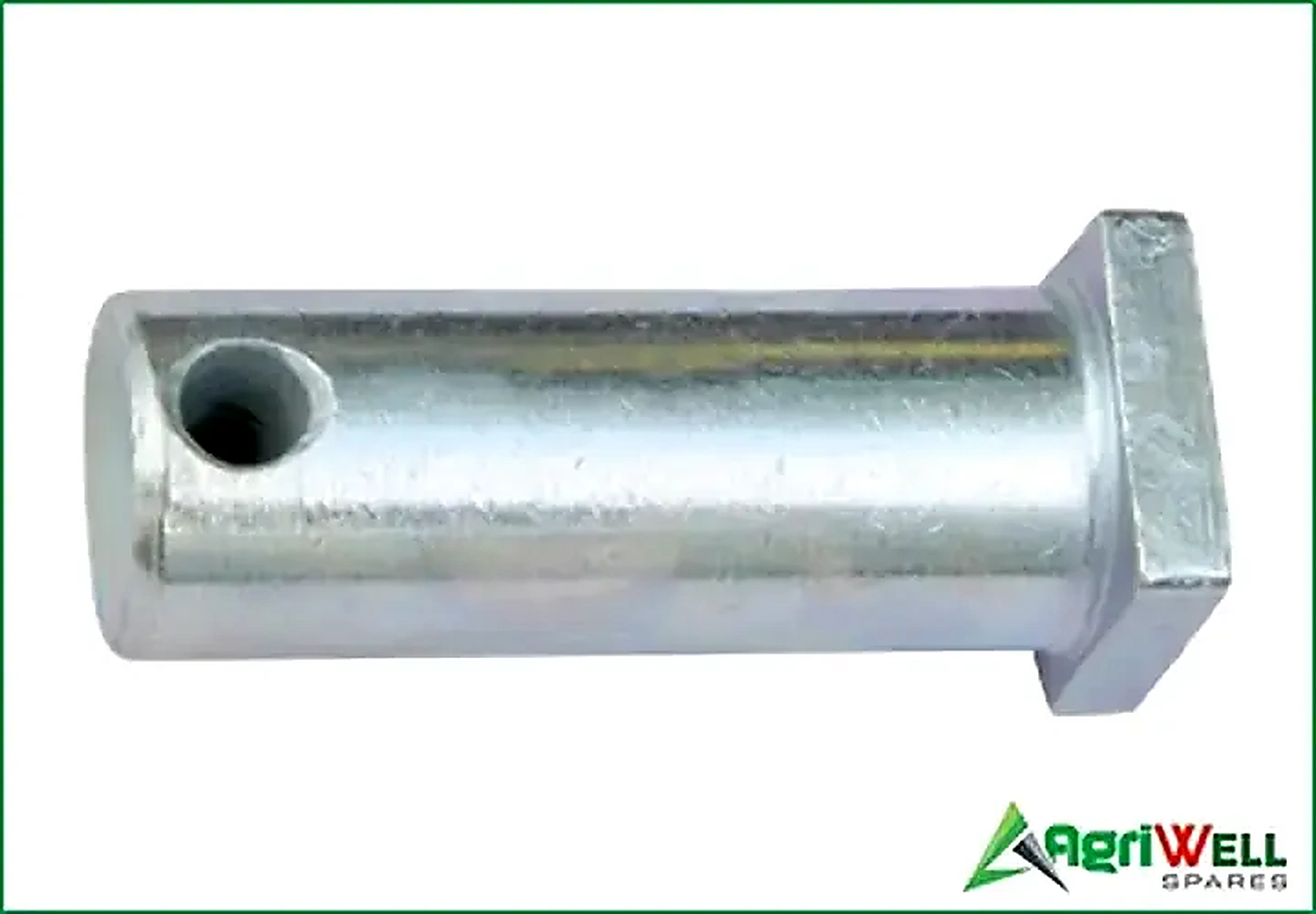

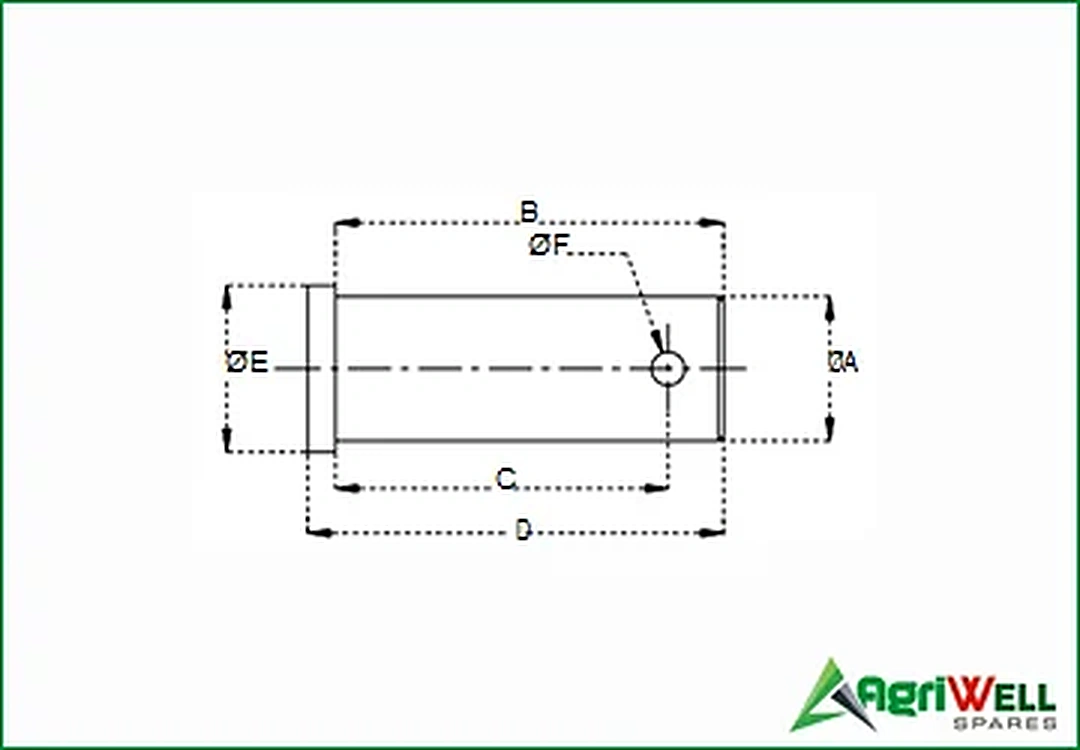

| Part Number | Dia. ØA (mm) | Dim. B (mm) | Dim. C (mm) | Dim. D (mm) | Dia. ØE (mm) | Dia. ØF (mm) | Ref. Number |
|---|---|---|---|---|---|---|---|
| SHP-185420 | 18 | 60 | 54 | 65 | 20 | 6 | 04116 |
| SHP-185420 | 18 | 60 | 54 | 65 | 20 | 6 | 04116 |
| SHP-265230 | 26 | 60 | 52 | 65 | 30 | 6 | 04117 |
| SHP-266030 | 26 | 70 | 60 | 75 | 30 | 6 | 04118 |
| SHP-268630 | 26 | 95 | 86 | 100 | 30 | 6 | 19723 |
Swipe horizontally to view all specifications →
