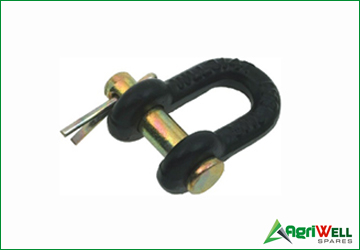

UTILITY CLEVISES
Precision agricultural component
UTILITY CLEVISES
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications

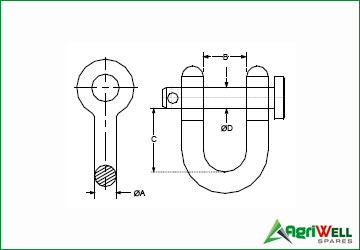

| AgriWellPart No. | Reference No. | Popular Code | Body Dia ØA (Inches) | Clevis Opening B (Inches) | Usable Length C (Inches) | Pin Dia ØD (Inches) | Working Load Limit (lbs.) | Package Qty. | Weight (lbs.) |
|---|---|---|---|---|---|---|---|---|---|
| AWUTCS9593 | 87299593 | CL490301 | 1/4n | 15/32n | 7/8n | 5/16n | 1,000 | 1 | 0.10 |
| AWUTCS9594 | 87299594 | CL490302 | 5/16n | 17/32n | 1n | 3/8n | 1,500 | 1 | 0.20 |
| AWUTCS9595 | 87299595 | CL490303 | 3/8n | 21/32n | 1-1/4n | 7/16n | 2,000 | 1 | 0.30 |
| AWUTCS9596 | 87299596 | CL490304 | 7/16n | 23/32n | 1-1/2n | 1/2n | 3,000 | 1 | 0.40 |
| AWUTCS9597 | 87299597 | CL490305 | 1/2n | 13/16n | 1-11/16n | 5/8n | 6,000 | 1 | 0.60 |
| AWUTCS9598 | 87299598 | CL490306 | 5/8n | 1-1/16n | 2n | 3/4n | 9,000 | 1 | 1.20 |
Swipe horizontally to view all specifications →
