LINCH PINS
Precision agricultural component
LINCH PINS
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications

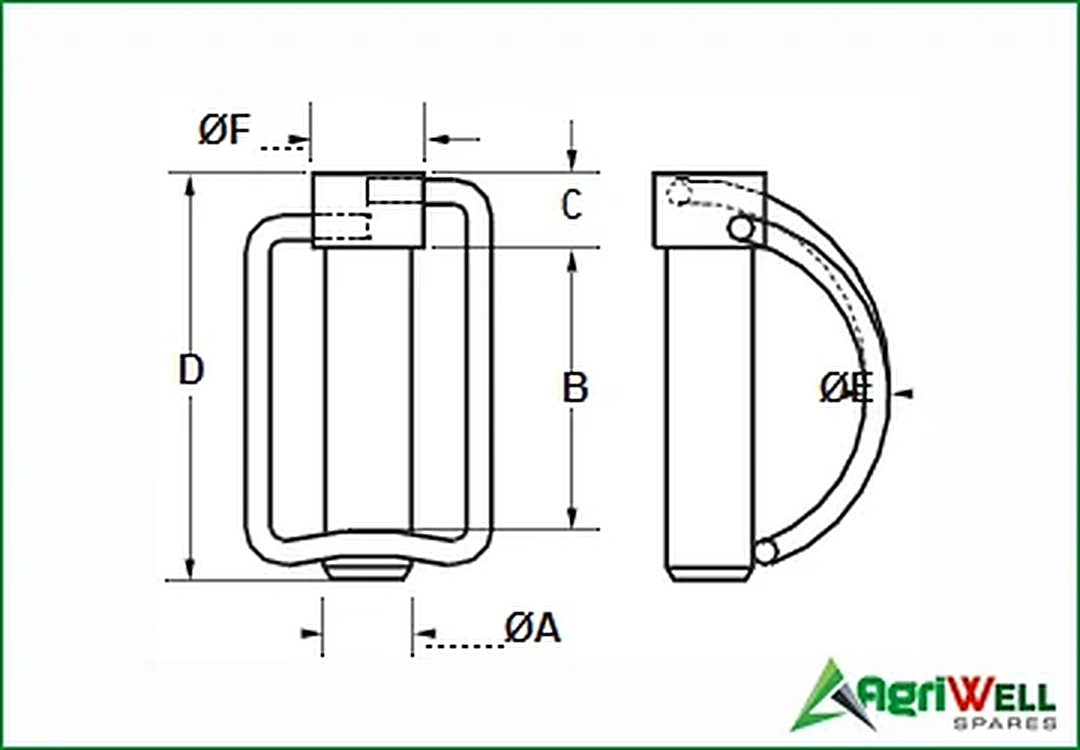

| Part Number | Dia. ØA (mm) | Dim. B (mm) | Dim. C (mm) | Dim. D (mm) | Dia. ØE (mm) | Dim. F (mm) | Ref. Number |
|---|---|---|---|---|---|---|---|

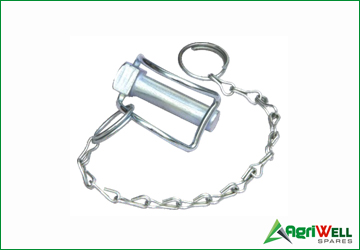

| LPSC-1447 | 14 | 47 | 12 | 67 | 4 | 18 | 00247 |
| LPSC-1657 | 16 | 57 | 13 | 70 | 4 | 20 | 00248 |
| LPSC-1960 | 19 | 60 | 15 | 90 | 5 | 25 | 00463 |
Swipe horizontally to view all specifications →
Technical specifications
Product specifications 2

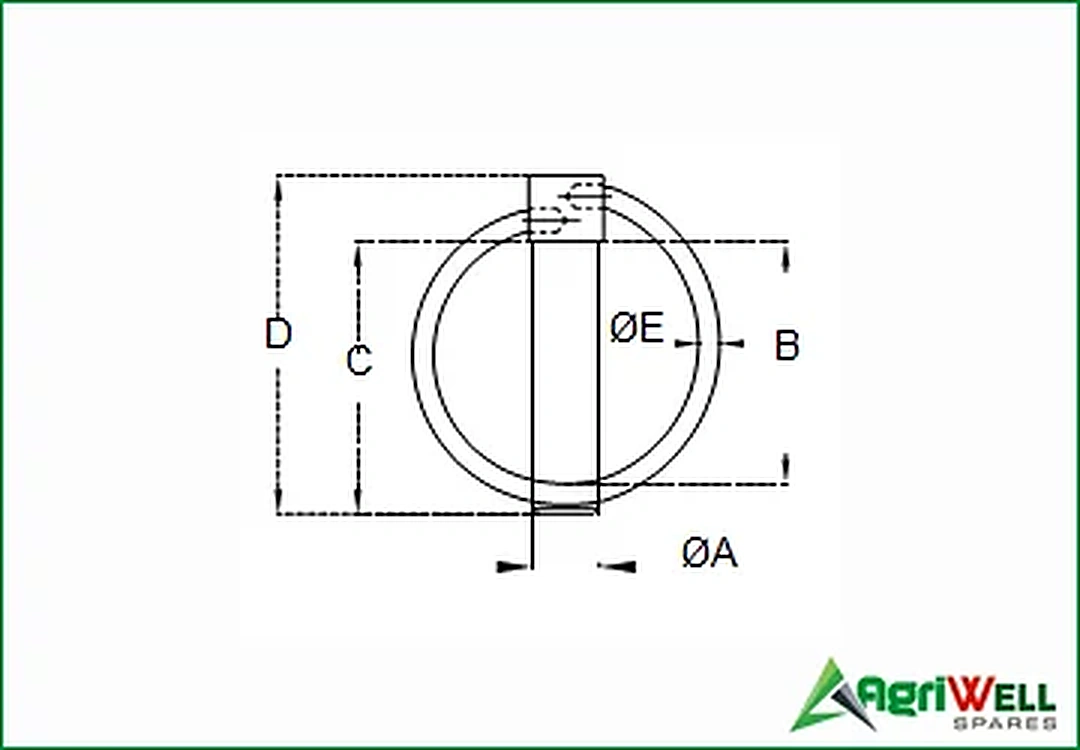

| Part Number | Dia. ØA (mm) | Dim. B (mm) | Dim. C (mm) | Dim. D (mm) | Dia. ØE (mm) | Ref. Number |
|---|---|---|---|---|---|---|

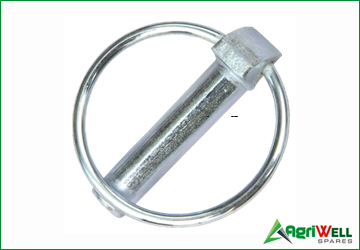

| LP-4529 | 4.5 | 29 | 35 | 45 | 2.5 | 10524 |
| LP-4533 | 4.5 | 33 | 42 | 51 | 3 | |
| LP-47628 | 4.76 | 28.6 | 35 | 44 | 3 | |
| LP-535 | 5 | 35 | 40 | 48 | 2.5 | 10518 |
| LP-633 | 6 | 33 | 40 | 49 | 3.3 | |
| LP-636 | 6 | 36.5 | 45 | 55 | 3 | 10519 |
| LP-63536 | 6.35 | 36.5 | 45 | 54 | 3.2 | |
| LP-736 | 7 | 36.5 | 45 | 55 | 3.3 | |
| LP-833 | 8 | 33 | 40 | 49 | 3.3 | |
| LP-836 | 8 | 36.5 | 45 | 54 | 3 | 10520 |
| LP-839 | 8 | 39 | 60 | 69 | 3.6 | |
| LP-860 | 8 | 60 | 70 | 80 | 3.5 | |
| LP-933 | 9 | 33 | 40 | 50 | 3.3 | |
| LP-936 | 9 | 36.5 | 45 | 55 | 3.5 | 10521 |
| LP-963 | 9 | 63 | 70 | 81 | 3.5 | |
| LP-9536 | 9.5 | 36 | 45 | 56 | 3.3 | |
| LP-9539 | 9.5 | 39 | 51 | 62 | 3.3 | |
| LP-1033 | 10 | 33 | 40 | 51 | 3.5 | |
| LP-1036 | 10 | 36.5 | 45 | 56 | 3.5 | |
| LP-1040 | 10 | 40 | 45 | 56 | 3.5 | 10522 |
| LP-1139 | 11 | 39 | 51 | 61 | 3.5 | |
| LP-1140 | 11 | 40 | 56 | 56 | 3.5 | 10523 |
| LP-1236 | 12 | 36.5 | 45 | 56 | 3.5 |
Swipe horizontally to view all specifications →
Technical specifications
Product specifications 3

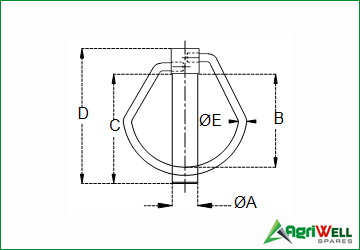

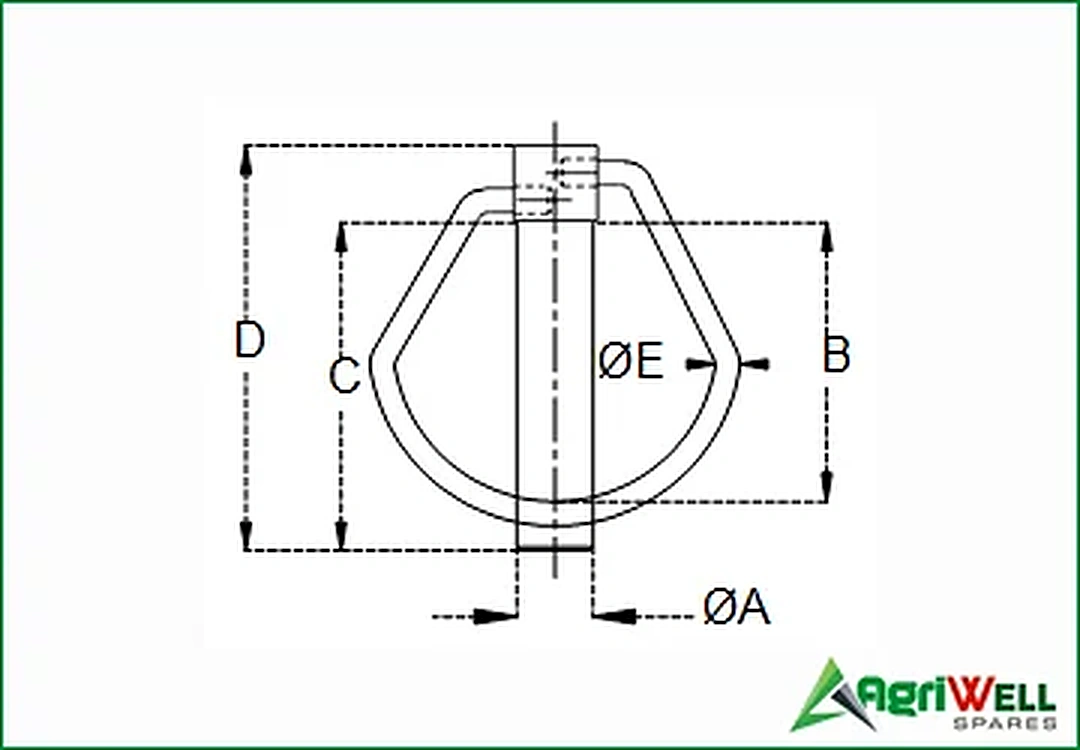

| Part Number | Dia. ØA (mm) | Dim. B (mm) | Dim. C (mm) | Dim. D (mm) | Dia. ØE (mm) | Ref. Number |
|---|---|---|---|---|---|---|
| LPPS-4523 | 4.5 | 23 | 28.5 | 35 | 2 | 00115 |
| LPPS-4524 | 4.5 | 24 | 38 | 44 | 2 | |
| LPPS-4530 | 4.5 | 30 | 38 | 44 | 2 | |
| LPPS-535 | 5 | 35 | 39.5 | 46 | 2.5 | 00099 |
| LPPS-632 | 6 | 32 | 40 | 48 | 2.4 | |
| LPPS-636 | 6 | 36 | 46.5 | 54 | 3 | 00100 |
| LPPS-740 | 7 | 40 | 45 | 54 | 2.3 | |
| LPPS-840 | 8 | 40 | 46 | 56 | 3.5 | 00102 |
| LPPS-940 | 9 | 40 | 45 | 56 | 3.5 | 00103 |
| LPPS-1040 | 10 | 40 | 46 | 58 | 3.5 | 00104 |
| LPPS-1140 | 11 | 40 | 46 | 58 | 3.5 | 00105 |
| LPPS-1148 | 11 | 48 | 53 | 78 | 4 | |
| LPPS-1556 | 15 | 56.5 | 62 | 84.5 | 4 |
Swipe horizontally to view all specifications →
Technical specifications
Product specifications 4

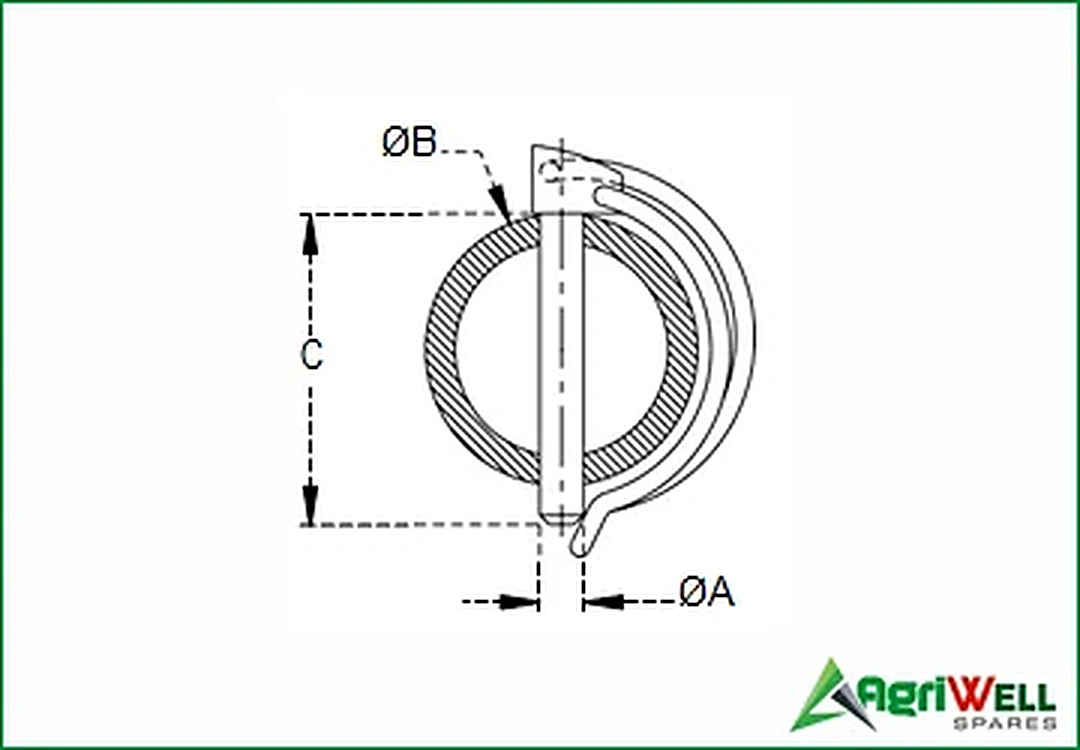

| Part Number | Dia. ØA (mm) | Dim. B (mm) | Dim. C (mm) | Ref. Number |
|---|---|---|---|---|
| LPP-4528 | 4.5 | 28 | 32 | S-12793 |
| LPP-636 | 6 | 36 | 40 | S-12794 |
| LPP-834 | 8 | 34 | 38 | S-12795 |
| LPP-840 | 8 | 40 | 45 | S-12796 |
| LPP-855 | 8 | 55 | 60 | S-12797 |
| LPP-1045 | 10 | 45 | 50 | S-12798 |
| LPP-1055 | 10 | 55 | 60 | S-12799 |
Swipe horizontally to view all specifications →
Technical specifications
Product specifications 5

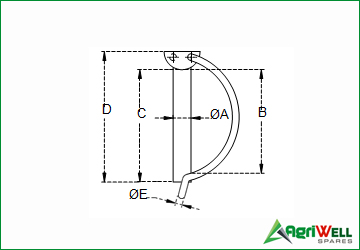

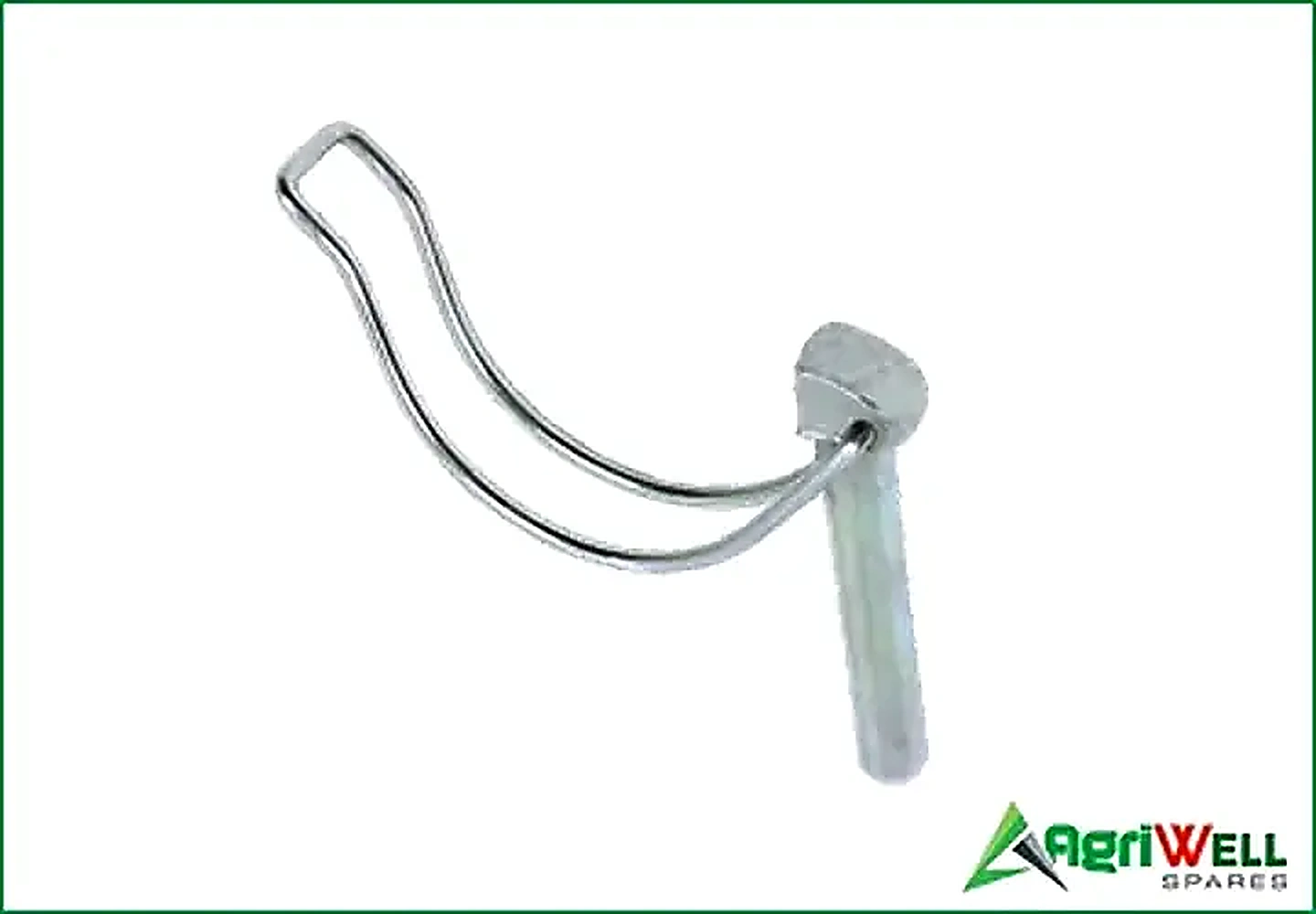

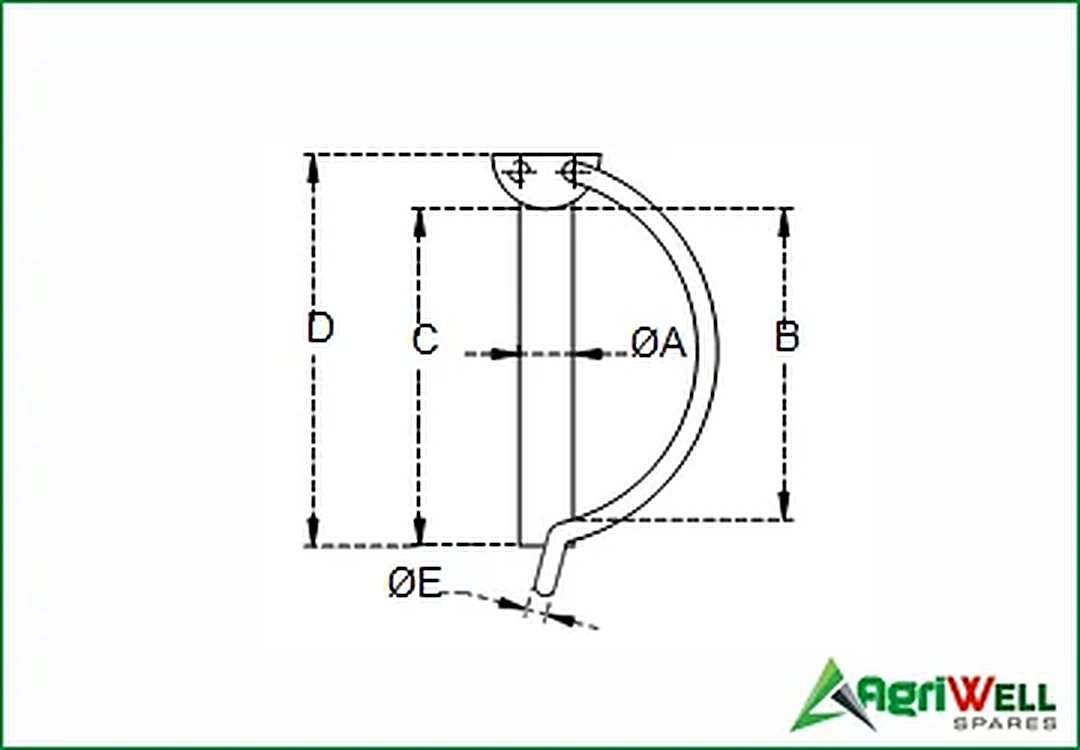

| Part Number | Dia. ØA (mm) | Dim. B (mm) | Dim. C (mm) | Dim. D (mm) | Dia. ØE (mm) |
|---|---|---|---|---|---|
| LPPH-734 | 7 | 34 | 33 | 39 | 2.5 |
| LPPH-738 | 7 | 38 | 37 | 43 | 2.7 |
| LPPH-742 | 7 | 42 | 41 | 47 | 2.7 |
| LPPH-834 | 8 | 34 | 33 | 39 | 2.5 |
| LPPH-838 | 8 | 38 | 37 | 43 | 2.7 |
| LPPH-842 | 8 | 42 | 41 | 47 | 2.7 |
| LPPH-846 | 8 | 46 | 45 | 51 | 3 |
| LPPH-1034 | 10 | 34 | 33 | 39 | 2.5 |
| LPPH-1038 | 10 | 38 | 37 | 43 | 2.7 |
| LPPH-1042 | 10 | 42 | 41 | 47 | 2.7 |
| LPPH-1046 | 10 | 46 | 45 | 51 | 3 |
Swipe horizontally to view all specifications →
