AgriWell Spares · Global component supply

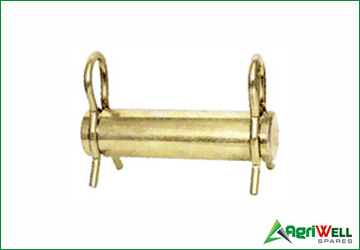

HYDRAULIC CYLINDER PINS
Precision agricultural component
HYDRAULIC CYLINDER PINS
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications

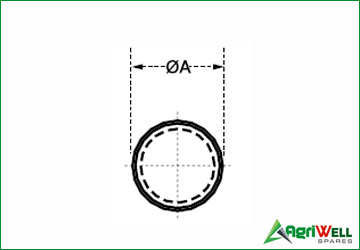

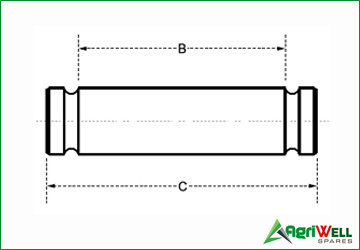

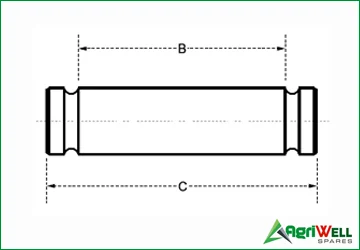

| AgriWellPart No. | ReferenceNumber | Popular Code | Pin Dia ØA (Inches) | Usable Length B (Inches) | Overall length C (Inches) | Package Qty. | Bulk Weight (lbs.) |
|---|---|---|---|---|---|---|---|
| AWHCP9427 | 87299427 | P7712 | 1" | 1" | 2-3/4" | 5 | 0.6 |
| AWHCP9428 | P7736 | 1" | 2-1/8" | 2-15/16" | 5 | 0.5 | |
| AWHCP9429 | P7738 | 1" | 2-1/4" | 3-1/16" | 5 | 0.6 | |
| AWHCP9430 | 87299430 | P7729 | 1" | 2-3/4" | 3-9/16" | 5 | 0.8 |
| AWHCP9431 | 87299431 | P7743 | 1" | 2-7/8" | 3-11/16" | 5 | 0.8 |
| AWHCP9432 | 87299432 | P7744 | 1" | 1" | 3-13/16" | 5 | 0.9 |
| AWHCP9433 | P7713 | 1" | 3-1/8" | 3-15/16" | 5 | 0.9 | |
| AWHCP9434 | 87299434 | P7746 | 1" | 3-1/4" | 4-1/16" | 5 | 0.9 |
| AWHCP9435 | 87299435 | P7731 | 1-1/8" | 1-15/16" | 2-3/8" | 5 | 0.8 |
| AWHCP9436 | 87299436 | P7750 | 1-1/4" | 3-1/4" | 4-1/16" | 5 | 1.4 |
Swipe horizontally to view all specifications →
