IMPLEMENT MOUNTING PINS

Current product rangeEuropean Products Range

Precision agricultural component

IMPLEMENT MOUNTING PINS

Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.

Discuss this product →

Technical specifications

Product specifications

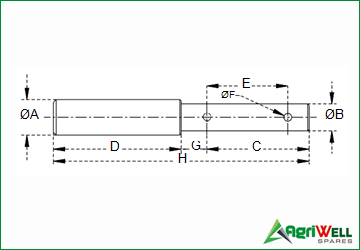

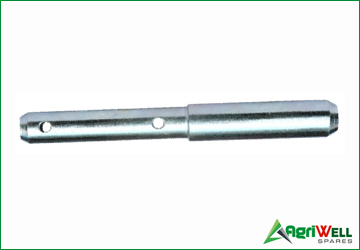

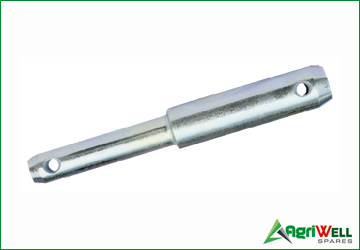

Part Number	Dia. ØA (mm)	Dia. ØB (mm)	Dim. C (mm)	Dim. D (mm)	Dim. E (mm)	Dia. ØF (mm)	Dim. G (mm)	Dim. H (mm)	Ref. Number
IMP-2519160	25	19	80	80	53	5	18	160
IMP-1916156	19	16	82	74	55	5	16.5	156
IMP-2216168	22	16	88	80	68	5	12	168
IMP-2519166	25	19	81	85	53	5	18	166
IMP-2519180	25	19	90	90	57	5	18	180	01628
IMP-2822180	28	22	90	90	57	5	18	180	01627
IMP-282275	28	22	85	90	50	6	16.5	75
IMP-3225178	32	25	95	83	62	6.5	18	178
IMP-3225172	32	25	92	80	55	6.5	22	172

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 2

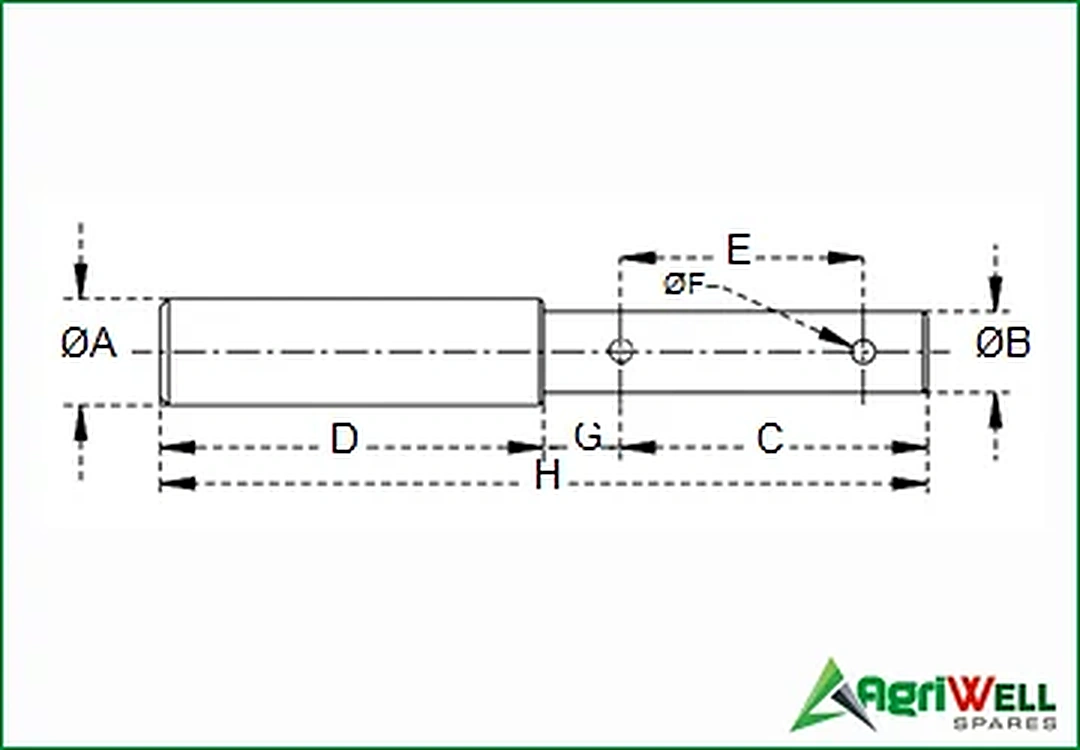

Part Number	Dia. ØA (mm)	Dia. ØB (mm)	Dim. C (mm)	Dim. D (mm)	Dim. E (mm)	Dia. ØF (mm)	Dim. G (mm)	Ref. Number
IMP-2822147	28	22	62.5	147	47	70.5	12
IMP-2822181	28	22	76.5	181	60	88	12
IMP-2822190	28	22	85	190	62	85	12	01639
IMP-2822181A	28	22	103	181	87.3	60	12
IMP-2822176	28	22	120	176	92	39	12
IMP-2822181B	28.6	22	76	181	60	87.3	12
IMP-3428141	34	28	61	141	43.5	62	12

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 3

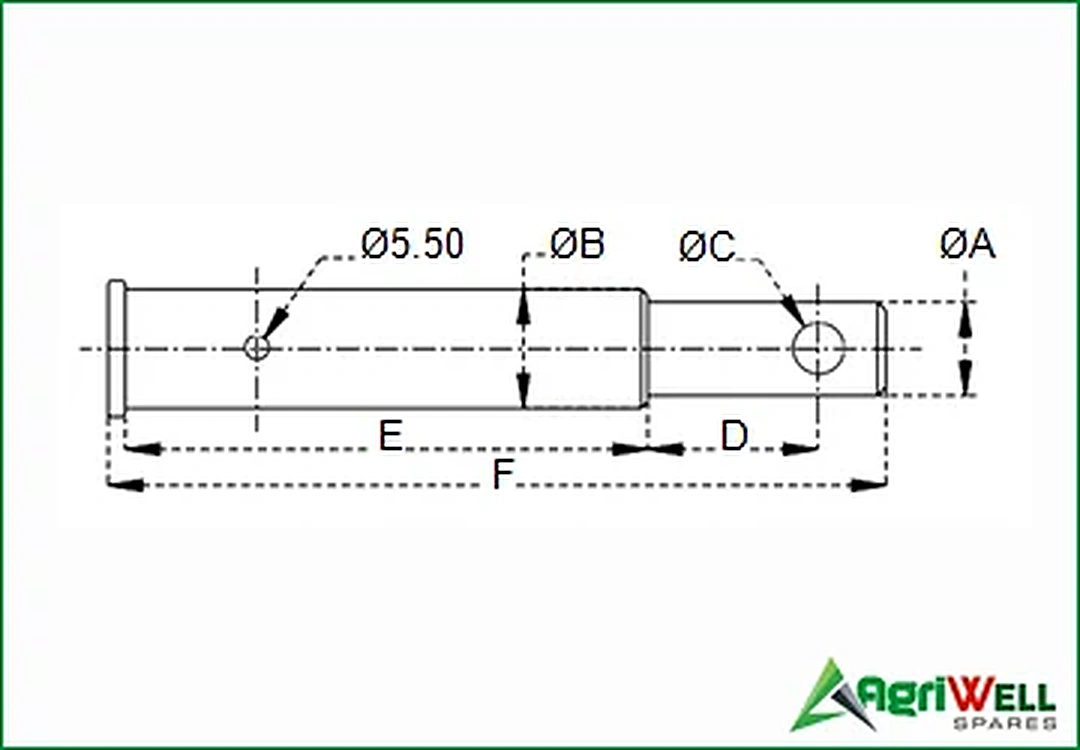

Part Number	Dia. ØA (mm)	Dia. ØB (mm)	Dia. ØC (mm)	Dim. D (mm)	Dim. E (mm)	Dim. F (mm)	Ref. Number
IMP-2228122	22	28	12	40	122	183	01612
IMP-2228112	22	28	12	40	112	172	01613

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 4

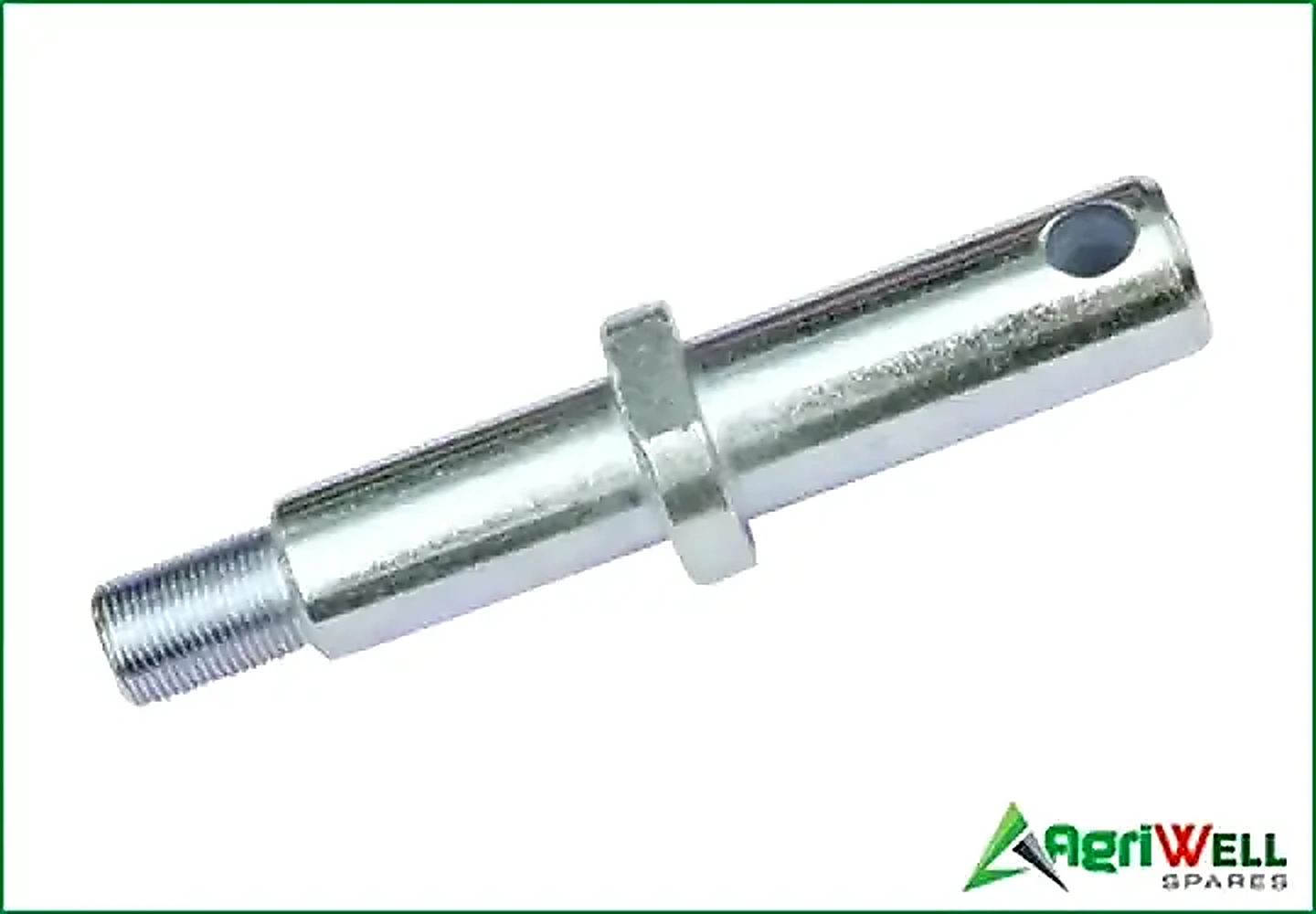

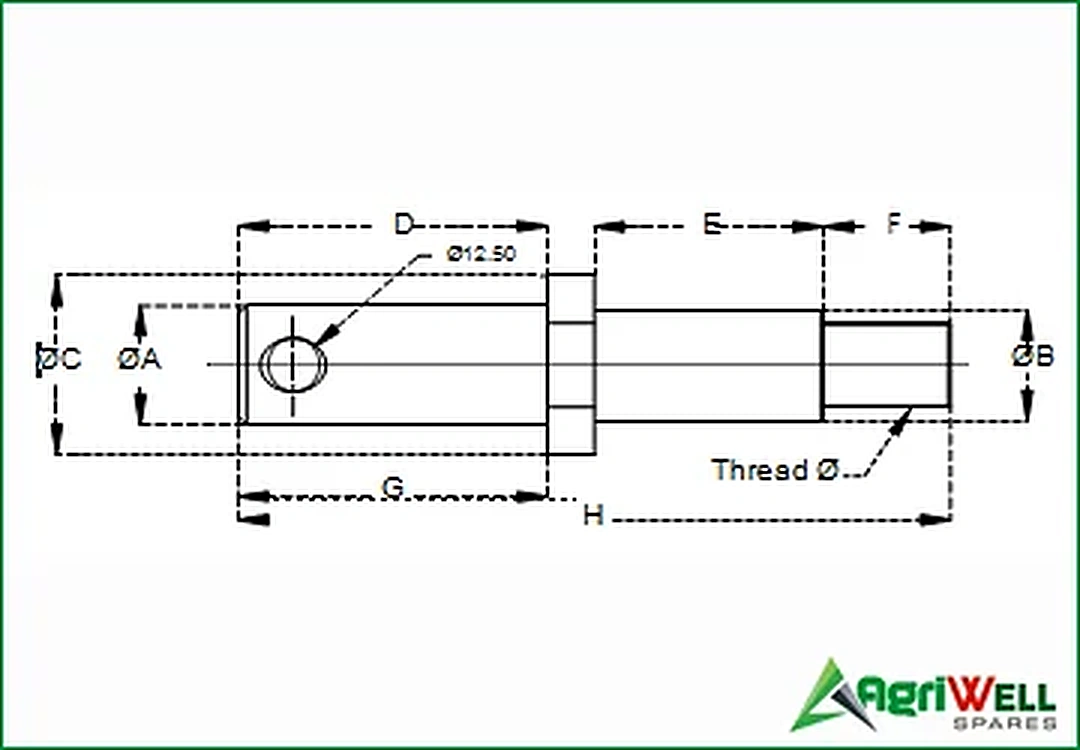

Part Number	Dia. ØA (mm)	Dia. ØB (mm)	Dia. ØC (mm)	Dim. D (mm)	Dim. E (mm)	Dim. F (mm)	Dim. G (mm)	Dim. H (mm)	Dia. ØI (mm)	Thread Dia. Ø (mm)	Ref. Number
IMP-2222160	22	22	32	70	49	30	55	160	12.5	20 x 1.5	09559
IMP-2826168	28	26	42	73	54	30	60	168	12.5	20 x 1.5	09560

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 5

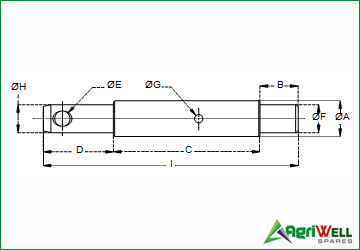

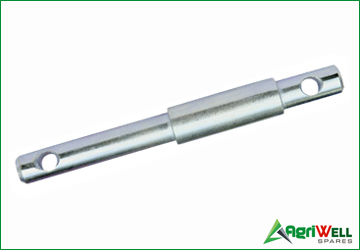

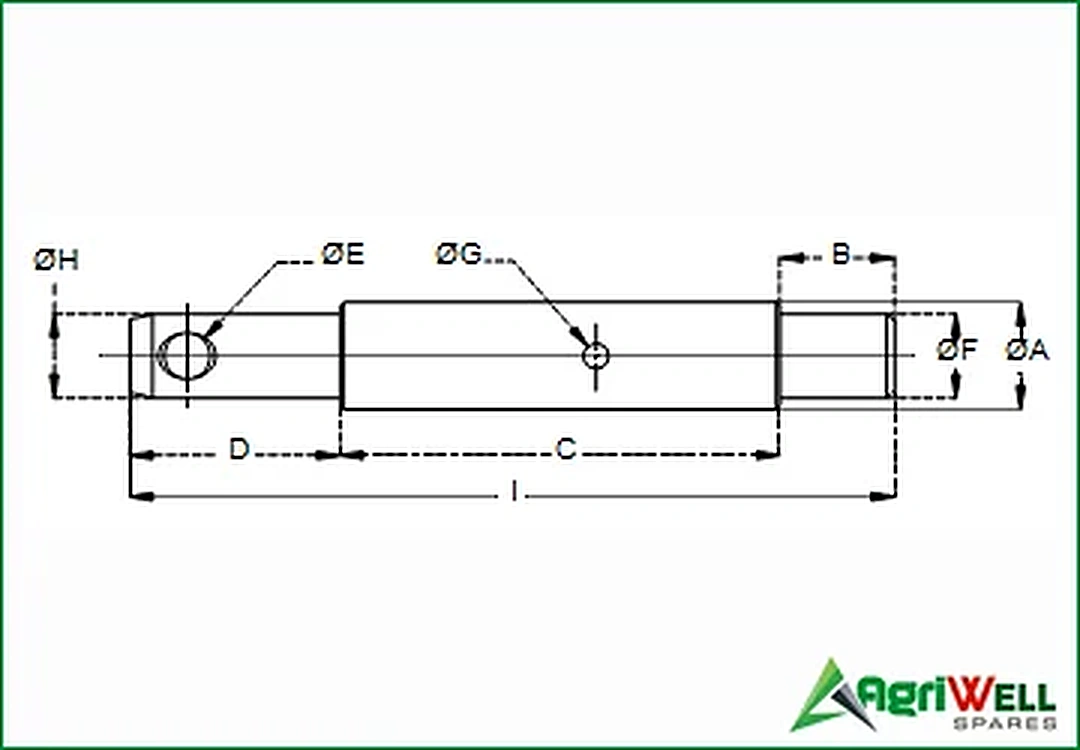

Part Number	Dia. ØA (mm)	Dim. B (mm)	Dim. C (mm)	Dim. D (mm)	Dia. ØE (mm)	Dia. ØF (mm)	Dia. ØG (mm)	Dia. ØH (mm)	Dim. I (mm)	Ref. Number
IMPD-2222200	28	30	115	55	12	22	6.5	22	200	01629
IMPD-2522200	28	30	115	55	12	22	6.5	25	200	03146

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 6

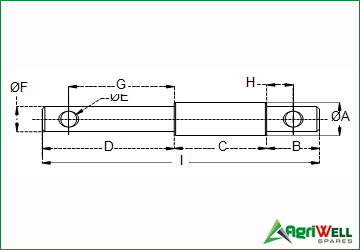

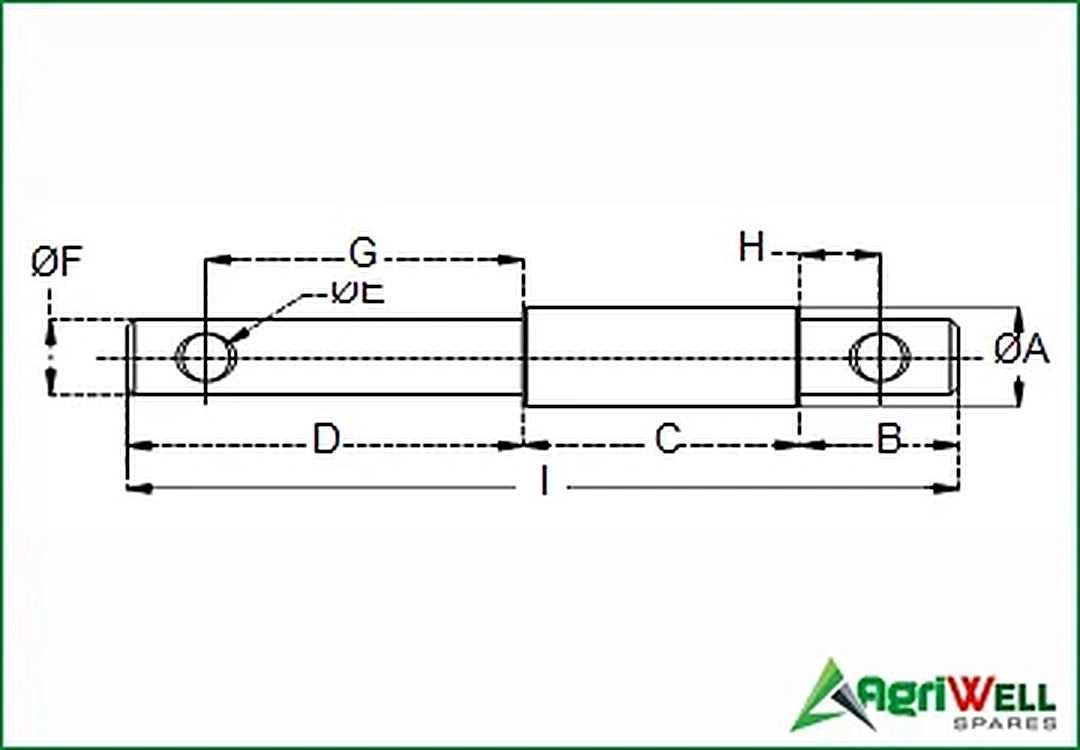

Part Number	Dia. ØA (mm)	Dim. B (mm)	Dim. C (mm)	Dim. D (mm)	Dia. ØE (mm)	Dia. ØF (mm)	Dim. G (mm)	Dim. H (mm)	Dim. I (mm)	Ref. Number
IMPD-1925210	25	40	70	100	12	19	80	20	210	01611
IMPD-1925212	25	38	96	78	12	19	62	22	212
IMPD-1925170	25	26	66	78	6.5	19	70	18	170
IMPD-2228200	28	35	75	90	12	22	75	20	200
IMPD-2228210	28	40	70	100	12	22	80	20	210	01620
IMPD-2228230	28	40	90	100	12	22	80	20	230
IMPD-2228220	28.6	40	89	100	12	22.2	80	20	220
IMPD-2532250	32	40	115	95	12	25	81	26	250
IMPD-2836277	36.5	36	150	91	12	28	81	26	277
IMPD-2836290	36.5	45	150	95	12	28	80	28	290

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 7

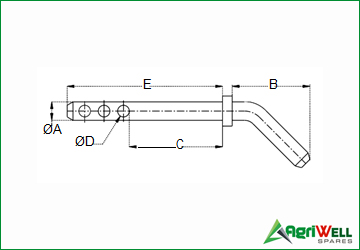

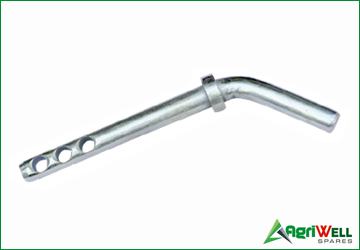

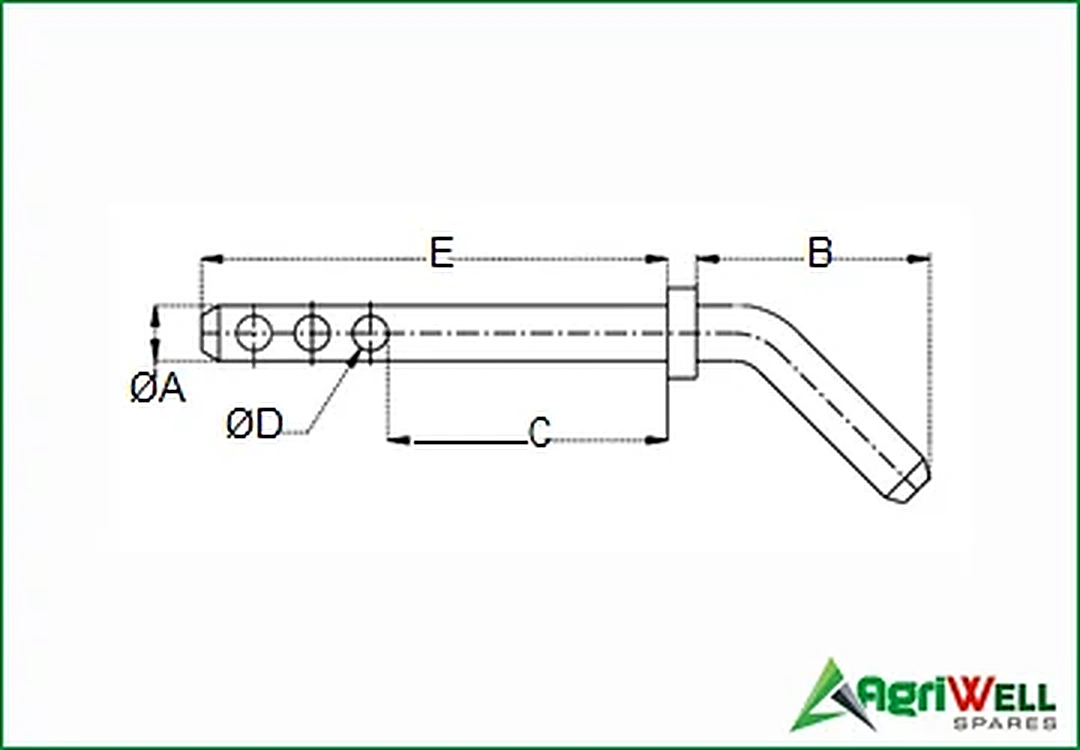

Part Number	Dia. ØA (mm)	Dim. B (mm)	Dim. C (mm)	Dim. D (mm)	Dia. ØE (mm)	Ref. Number
IMPB-1995160	19	90	95	12	160	09078
IMPB-2295160	22	90	95	12	160	09079

Swipe horizontally to view all specifications →
