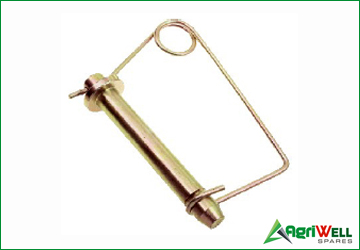

HITCH PIN SAFETY LOCK
Precision agricultural component
HITCH PIN SAFETY LOCK
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications

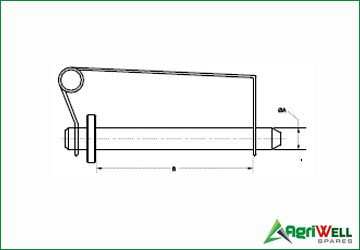

| AgriWellPart No. | ReferenceNumber | Popular Code | Pin Dia ØA (Inches) | Usable Length B (Inches) | Overall length (Inches) | Package Qty. | Weight (lbs.) |
|---|---|---|---|---|---|---|---|
| AWHPSL9826 | 87299826 | P71011SP | 1/2" | 4" | 5-1/2" | 1 | 0.5 |
| AWHPSL9827 | 87299827 | P71021SP | 5/8" | 4" | 5-1/2" | 1 | 0.7 |
| AWHPSL9828 | 87299828 | P71031SP | 3/4" | 4" | 5-1/2" | 1 | 1.0 |
| AWHPSL9829 | 87299829 | P71032SP | 3/4" | 6" | 7-1/2" | 1 | 1.2 |
| AWHPSL9830 | 87299830 | P71042SP | 7/8" | 6" | 7-1/2" | 1 | 1.5 |
| AWHPSL9831 | 87299831 | P71052SP | 1" | 6" | 7-1/2" | 1 | 1.9 |
