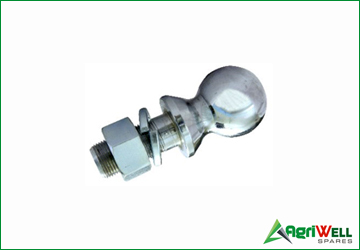

HITCH BALLS
Precision agricultural component
HITCH BALLS
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications
| AgriWellPart No. | ReferenceNumber | Popular Code | Description | Package Qty. | Bulk Weight (lbs.) |
|---|---|---|---|---|---|
| AWHB100504 | 87299456 | HB100504 | 1-7/8" chrome hitch ball with 3/4" stud; 1-3/4" stud length; VESC Class I | 1 | 1.6 |
| AWHB100602 | 87299458 | HB100602 | 2" chrome hitch ball with 3/4" Bolt; economy type; VESC Class I | 1 | 1.8 |
| AWHB100604 | HB100604 | 2" chrome hitch ball with 3/4" stud; 1-3/4" stud length; VESC Class II | 1 | 1.8 | |
| AWHB100608 | 87299459 | HB100608 | 2" chrome hitch ball with 1" stud; 2-1/8" stud length; VESC Class III | 1 | 2.5 |
| AWHB100703 | 87299460 | HB100703 | 2-5/16" chrome hitch ball with 1-1/4" stud; 2-1/8" stud length; VESC Class IV | 1 | 4.0 |
| AWHB100705 | HB100705 | 2-5/16" chrome hitch ball with 1-3/8" stud; 2-31/64" stud length; VESC Class IV | 1 | 4.4 | |
| AWHB100509 | HB100509 | Hitch Ball cover: fits 1-7/8" and 2" balls : flexible gray vinyl | 1 | 0.1 |
Swipe horizontally to view all specifications →
Technical specifications
Product specifications 2

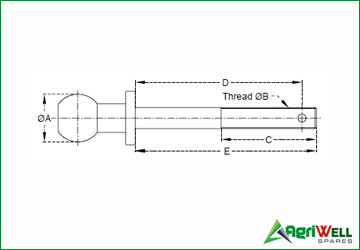

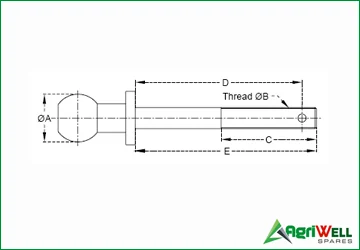

| AgriWellPart No. | Reference No. | Pin Dia ØA (mm) | Thread Dia ØB (Inches) | Dim C (mm) | Dim D (mm) | Dim E (mm) | Package Qty. |
|---|---|---|---|---|---|---|---|
| AWSHB78162 | S-3210 | 50 | 7/8” | 100 | 162 | 190 | 1 |
| AWSHB1162 | S-3211 | 50 | 1” | 100 | 162 | 190 | 1 |
Swipe horizontally to view all specifications →
