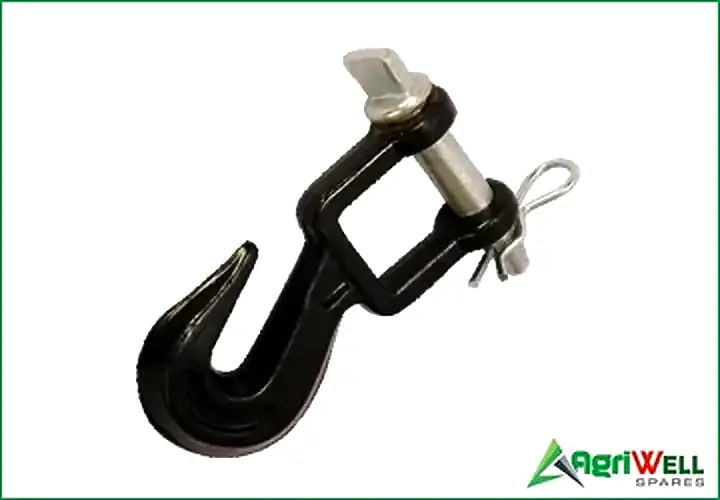

DRAW BAR HOOK
Precision agricultural component
DRAW BAR HOOK
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications

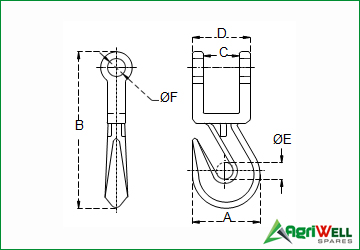

| Part Number | Dim. A (mm) | Dim. B (mm) | Dim. C (mm) | Dim. D (mm) | Dim. E (mm) | Dia. ØF mm | Working Load Limit (Kg.) | Ref. Number |
|---|---|---|---|---|---|---|---|---|
| HOOK-1085 | 10 | 85 | 47 | 26 | 7 | 9 | 1200 | 08450 |
| HOOK-11100 | 11 | 100 | 58 | 30 | 10 | 11 | 1800 | 08451 |
| HOOK-14115 | 14 | 115 | 65 | 32 | 13 | 13 | 2500 | 08452 |
Swipe horizontally to view all specifications →
Technical specifications
Product specifications 2

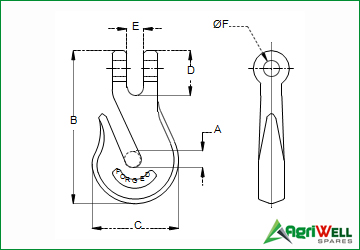

| Part Number | Dim. A (mm) | Dim. B (mm) | Dim. C (mm) | Dim. D (mm) | Dim. E (mm) | DiM. F mm | Working Load Limit (Kg.) | Ref. Number |
|---|---|---|---|---|---|---|---|---|
| DGH-19190 | 90 | 190 | 40 | 69 | 19 | 19 | 4300 | 08448 |
Swipe horizontally to view all specifications →
