LOCKING PINS (PTO PIN) & PTO ACCESSORIES
Precision agricultural component
LOCKING PINS (PTO PIN) & PTO ACCESSORIES
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications

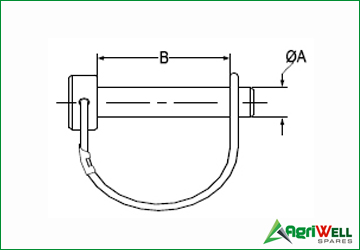

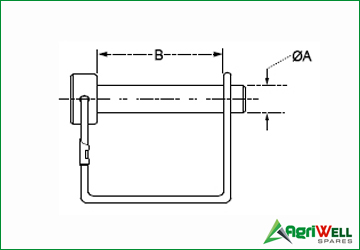

| AgriWellPart No. | ReferenceNumber | Popular Code | Pin Dia ØA (Inches) | Usablel Length B (Inches) | Wire Loop | Package Qty. | Bulk Weight (lbs.) |
|---|---|---|---|---|---|---|---|
| AWPTP9536 | 87299536 | P7950 | 1/4" | 1-3/8" | Round | 10 | 0.06 |
| AWPTP9537 | 87299537 | P7938 | 1/4" | 1-3/4" | Round | 10 | 0.06 |
| AWPTP9538 | 87299538 | P7952 | 1/4" | 2-1/4" | Square | 10 | 0.08 |
| AWPTP9539 | 87299539 | P7953 | 1/4" | 2-1/2" | Square | 10 | 0.08 |
| AWPTP9540 | 87299540 | P7951 | 1/4" | 2-1/2" | Round | 10 | 0.08 |
| AWPTP9543 | 87299543 | P7954 | 5/16" | 1-3/8" | Round | 10 | 0.08 |
| AWPTP9545 | 87299545 | P7955 | 5/16" | 1-3/4" | Round | 10 | 0.08 |
| AWPTP9546 | 87299546 | P7939 | 5/16" | 2-1/4" | Square | 10 | 0.10 |
| AWPTP9547 | 87299547 | P7940 | 5/16" | 2-1/4" | Round | 10 | 0.10 |
| AWPTP9549 | 87299549 | P7956 | 5/16" | 2-1/2" | Round | 10 | 0.10 |
| AWPTP9550 | 87299550 | P7957 | 5/16" | 2-1/2" | Square | 10 | 0.10 |
| AWPTP9551 | 87299551 | P7958 | 5/16" | 3-1/2" | Square | 10 | 0.14 |
| AWPTP9552 | 87299552 | P7959 | 5/16" | 3-15/16" | Square | 10 | 0.14 |
| AWPTP9553 | 87299553 | P7960 | 3/8" | 1-1/2" | Round | 10 | 0.11 |
| AWPTP9555 | 87299555 | P7941 | 3/8" | 2-1/4" | Round | 10 | 0.14 |
| AWPTP9556 | 87299556 | P7964 | 3/8" | 2-1/4" | Square | 10 | 0.14 |
| AWPTP9557 | 87299557 | P7963 | 3/8" | 2-1/2" | Round | 10 | 0.14 |
| AWPTP9558 | 87299558 | P7965 | 3/8" | 2-1/2" | Square | 10 | 0.16 |
| AWPTP9559 | 87299559 | P7966 | 3/8" | 3" | Square | 10 | 0.16 |
| AWPTP9560 | 87299560 | P7967 | 3/8" | 3-7/16" | Square | 10 | 0.18 |
| AWPTA619E | SPC160619E | Sp16619 | Yoke pin assembly; fits most American PTO yokes | 5 | 0.10 | ||
| AWPTA625E | Sp16625 | Yoke pin assembly for 1-3/8" X 6 spline or spline adaptor, welded yoke only | 5 | 0.10 | |||
| AWPTA626E | Sp16626 | Yoke pin assembly for 1-3/8" X 21 spline or spline adaptor, welded yoke only | 5 | 0.20 | |||
| AWPTA321E | SPC171321E | 17321 | Roll pin for over-running clutches; 5 per bag | 5 | 0.10 |
