TOP LINK PINS
Precision agricultural component
TOP LINK PINS
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications

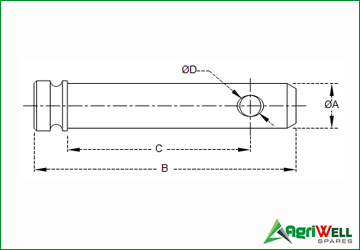

| Part Number | Dia. ØA (mm) | Dim. B (mm) | Dim. C (mm) | Dia. ØD (mm) N | Ref. umber |
|---|---|---|---|---|---|
| TLP-1676113 | 15.9 | 113 | 76 | 8.3 | |
| TLP-1682113 | 15.9 | 112.7 | 82.2 | 8.3 | |
| TLP-195290 | 19 | 90 | 52 | 12 | |
| TLP-195790 | 19 | 90 | 57 | 12 | |
| TLP-196595 | 19 | 95 | 65 | 10 | |
| TLP-1976113 | 19 | 113 | 76 | 12 | 12419 |
| TLP-1985117 | 19 | 117 | 85 | 10 | |
| TLP-1986123 | 19 | 123 | 86 | 12 | |
| TLP-1995125 | 19 | 125 | 95 | 12 | 03806 |
| TLP-1992127 | 19 | 127 | 92 | 12 | |
| TLP-1995133 | 19 | 133 | 95 | 12 | |
| TLP-19103135 | 19 | 135 | 102.5 | 8.5 | |
| TLP-19105135 | 19 | 135 | 105 | 10 | |
| TLP-19103138 | 19 | 138 | 103 | 12 | 09072 |
| TLP-19116150 | 19 | 150 | 116 | 12 | |
| TLP-19125155 | 19 | 155 | 125 | 10 | |
| TLP-19127164 | 19 | 164 | 127 | 12 | |
| TLP-2595132 | 25 | 132 | 95 | 12 | |
| TLP-25105136 | 25 | 136 | 105 | 11 | |
| TLP-25105141 | 25 | 141 | 105 | 12 | |
| TLP-25110145 | 25 | 145 | 110 | 11 | |
| TLP-25125156 | 25 | 156 | 125 | 11 | |
| TLP-25126165 | 25 | 165 | 126 | 12 | |
| TLP-25136180 | 25 | 180 | 136 | 12 | |
| TLP-25145178 | 25 | 178 | 145 | 11 | |
| TLP-2586123 | 25.4 | 123 | 86 | 12 | |
| TLP-2595135 | 25.4 | 135 | 95 | 12 | 03807 |
| TLP-25110148 | 25.4 | 148 | 110 | 12 | 12422 |
| TLP-25116154 | 25.4 | 154 | 116 | 12 | |
| TLP-25142180 | 25.4 | 180 | 142 | 12 | 12421 |
| TLP-28103151 | 28 | 151 | 103 | 12 | |
| TLP-19145175 | 19 | 175 | 145 | 10 | |
| TLP-19165197 | 19 | 197 | 165 | 10 | |
| TLP-2083117 | 20 | 117 | 83 | 12 | |
| TLP-223978 | 22 | 78 | 39 | 12 | |
| TLP-2276114 | 22 | 114 | 76 | 12 | |
| TLP-2278114 | 22 | 114 | 78 | 8.3 | |
| TLP-2285118 | 22 | 118 | 85 | 11 | |
| TLP-2294132 | 22 | 132 | 94 | 12 | |
| TLP-22105136 | 22 | 136 | 105 | 12 | |
| TLP-22110140 | 22 | 140 | 110 | 12 | |
| TLP-22125158 | 22 | 158 | 125 | 11 | |
| TLP-22149190 | 22 | 190 | 149 | 12 | |
| TLP-22145178 | 22 | 178 | 145 | 11 | |
| TLP-22184221 | 22 | 221 | 184 | 12 | 09073 |
| TLP-2576115 | 25 | 115 | 76 | 12 | |
| TLP-2585136 | 25 | 136 | 85 | 11 | |
| TLP-28125156 | 28 | 156 | 125 | 12 | |
| TLP-28130165 | 28 | 165 | 130 | 12 | 09074 |
| TLP-28145178 | 28 | 178 | 145 | 12 | |
| TLP-2895133 | 28.6 | 133 | 95 | 12 | |
| TLP-28159197 | 28.6 | 197 | 159 | 12 | |
| TLP-31125165 | 31 | 165 | 125 | 12 | 09075 |
| TLP-32119165 | 31.7 | 165.1 | 118.7 | 12 | |
| TLP-32105152 | 32 | 152 | 105 | 12 | |
| TLP-32105154 | 32 | 154 | 105 | 12 | |
| TLP-32125164 | 32 | 164 | 125 | 12 | |
| TLP-32136175 | 32 | 175 | 136 | 12 |
Swipe horizontally to view all specifications →
Technical specifications
Product specifications 2

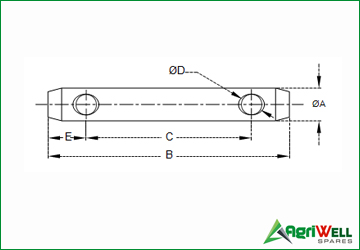

| Part Number | Cat. | Dia. ØA (mm) | Dim. B (mm) | Dim. C (mm) | Dia. ØD (mm) | Dim. E (mm) | Ref. Number |
|---|---|---|---|---|---|---|---|
| TLP-HL1996140 | 1 | 19 | 140 | 96 | 12 | 22 | 00270 |
| TLP-HL19126170 | 1 | 19 | 170 | 126 | 12 | 22 | 00272 |
| TLP-HL19163207 | 1 | 19 | 207 | 163 | 12 | 22 | 00273 |
| TLP-HL19210254 | 1 | 19 | 254 | 210 | 12 | 22 | 00261 |
| TLP-HL2296140 | - | 22 | 140 | 96 | 12 | 22 | 09076 |
| TLP-HL22126170 | - | 22 | 170 | 126 | 12 | 22 | 09077 |
| TLP-HL25100144 | 2 | 25 | 144 | 100 | 12 | 22 | 00274 |
| TLP-HL25120164 | 2 | 25 | 164 | 120 | 12 | 22 | 00275 |
| TLP-HL25166210 | 2 | 25 | 210 | 166 | 12 | 22 | 00276 |
| TLP-HL25210254 | 2 | 25 | 254 | 210 | 12 | 22 | 00187 |
| TLP-HL25250294 | 2 | 25 | 294 | 250 | 12 | 22 | 00279 |
Swipe horizontally to view all specifications →
Technical specifications
Product specifications 3

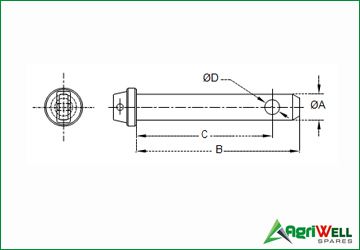

| Part Number | Dia. ØA (mm) | Dim. B (mm) | Dim. C (mm) | Dia. ØD (mm) | Ref. Number |
|---|---|---|---|---|---|
| TLP-LP147384 | 14.3 | 84 | 73 | 6 | |
| TLP-LP197792 | 19 | 92 | 77 | 6 | |
| TLP-LP19100120 | 19 | 120 | 100 | 8 | 00178 |
| TLP-LP19108120 | 19 | 120 | 108 | 8 | |
| TLP-LP2598120 | 25 | 120 | 98 | 8 | |
| TLP-LP25100120 | 25 | 120 | 100 | 11 | 00179 |
