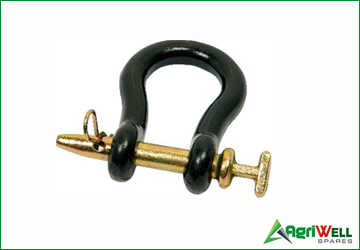

STRAIGHT CLEVISES
Precision agricultural component
STRAIGHT CLEVISES
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications

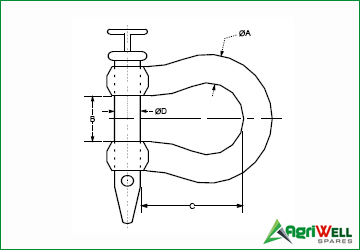

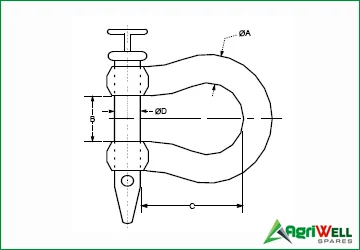

| AgriWellPart No. | ReferenceNumber | Popular Code | Body Dia ØA (Inches) | Clevis Opening B (Inches) | Usable Length C (Inches) | Pin Dia ØD (Inches) | Working Load Limit (lbs.) | Package Qty. | Weight (lbs.) |
|---|---|---|---|---|---|---|---|---|---|
| AWSTCS9563 | 87299563 | CL490103 | 5/8" | 7/8" | 3-1/4" | 1/2" | 6,000 | 1 | 1.50 |
| AWSTCS9564 | 87299564 | CL490104 | 3/4" | 1-5/16" | 3-3/4" | 5/8" | 12,000 | 1 | 2.50 |
| AWSTCS9565 | 87299565 | CL490105 | 7/8" | 1-5/16" | 3-1/4" | 3/4" | 16,000 | 1 | 3.00 |
| AWSTCS9566 | 87299566 | CL490106 | 7/8" | 1-5/16" | 4-1/4" | 3/4" | 16,000 | 1 | 3.60 |
| AWSTCS9567 | 87299567 | CL490107 | 15/16" | 1-7/16" | 4-5/8" | 7/8" | 20,000 | 1 | 4.30 |
| AWSTCS9568 | 87299568 | CL490108 | 1" | 2-1/8" | 5-5/16" | 1" | 25,000 | 1 | 5.80 |
