SPROCKETS

Current product rangeAgriculture Machinery Parts

Precision agricultural component

SPROCKETS

Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.

Discuss this product →

Technical specifications

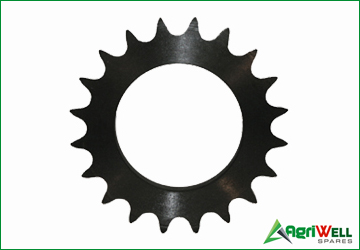

Product specifications

AgriWellPart No.	SKU NUMBER	PART NUM. BULK	PART NUM. BOX*	UPC ITEM NO. BULK BOX	NUMBER OF TEETH	OUTSIDE DIAM.	USE HUB SERIES	BULK WEIGHT (lbs.)
AWSK80412	80401200	HS804012	804012YAU (1)	80412 4	90140 3	12	2-3/16”	V	0.13
AWSK80413	80401300	HS804013	804013YAU (1)	80413 1	90141 0	13	2-1/4”	V	0.13
AWSK80414	80401400	HS804014	804014YAU (1)	80414 8	90142 7	14	2-7/16”	V	0.19
AWSK80415	80401500	HS804015	804015YAU (1)	80415 5	90143 4	15	2-5/8”	V	0.25
AWSK80416	80401600	HS804016	804016YAU (1)	80416 2	90144 1	16	2-13/16”	W	0.19
AWSK80417	80401700	HS804017	804017YAU (1)	80417 9	90145 8	17	3”	W	0.25
AWSK80418	80401800	HS804018	804018YAU (1)	80418 6	90146 5	18	3-1/8”	W	0.32
AWSK80419	80401900	HS804019	804019YAU (1)	80419 3	90147 2	19	3-5/16”	W	0.32
AWSK80420	80402000	HS804020	804020YAU (1)	80420 9	90148 9	20	3-7/16”	X	0.32
AWSK80421	80402100	HS804021	804021YAU (1)	80421 6	90149 6	21	3-5/8”	X	0.38
AWSK80422	80402200	HS804022	804022YAU (1)	80422 3	90150 2	22	3-3/4”	X	0.44
AWSK80423	80402300	HS804023	804023YAU (1)	80423 0	90151 9	23	4”	X	0.50
AWSK80424	80402400	HS804024	804024YAU (1)	80424 7	90152 6	24	4-1/6”	X	0.56
AWSK80425	80402500	HS804025	--	80425 4	--	25	4-3/16”	X	0.65
AWSK80426	80402600	HS804026	804026YAU (1)	80426 1	90154 0	26	4-3/8”	X	0.69
AWSK80427	80402700	HS804027	--	80427 8	--	27	4-1/2”	X	0.85
AWSK80428	80402800	HS804028	804028YAU (1)	80428 5	90166 3	28	4-11/16”	X	0.88
AWSK80439	80402900	HS804029	--	80439 1	--	29	4-3/4”	X	0.95
AWSK80430	80403000	HS804030	804030YAU (1)	80430 8	90168 7	30	5-1/16”	X	1.00
AWSK80432	80403200	HS804032	804032YAU (1)	80432 2	90169 4	32	5-3/8”	X	1.13
AWSK80435	80403500	HS804035	--	80435 3	--	35	5-11/16”	X	1.55
AWSK80436	80403600	HS804036	804036YAU (1)	80436 0	90171 7	36		X	1.50
AWSK80440	80404000	HS804040	804040YAU (1)	80440 7	90172 4	40	6-5/8”	X	2.00
AWSK80442	80404200	HS804042	--	80442 1	--	42		X	2.20
AWSK80445	80404500	HS804045	804045YAU (1)	80445 2	90174 8	45	7-3/8”	X	2.56
AWSK80448	80404800	HS804048	804048YAU (1)	80448 3	90175 5	48	7-7/8”	X	3.05
AWSK80454	80405400	HS804054	--	80454 4	--	54	8-7/8”	X	3.82
AWSK80460	80406000	HS804060	--	80460 5	--	60	9-3/16”	X	5.10
AWSK80472	80407200	HS804072	--	80472 8	--	72	11-3/16”	X	7.50
AWSK80480	80408000	HS804080	--	80480 3	--	80	12-15/16”	X	9.00
AWSK80496	80409600	HS804096	--	80496 4	--	96	15-1/2”	X	13.30
* Number in parenthesis indicates clamshell quantity.

Swipe horizontally to view all specifications →

Technical specifications

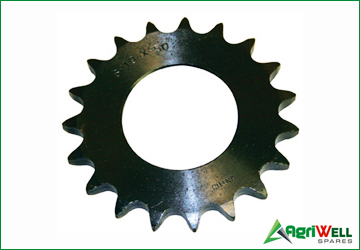

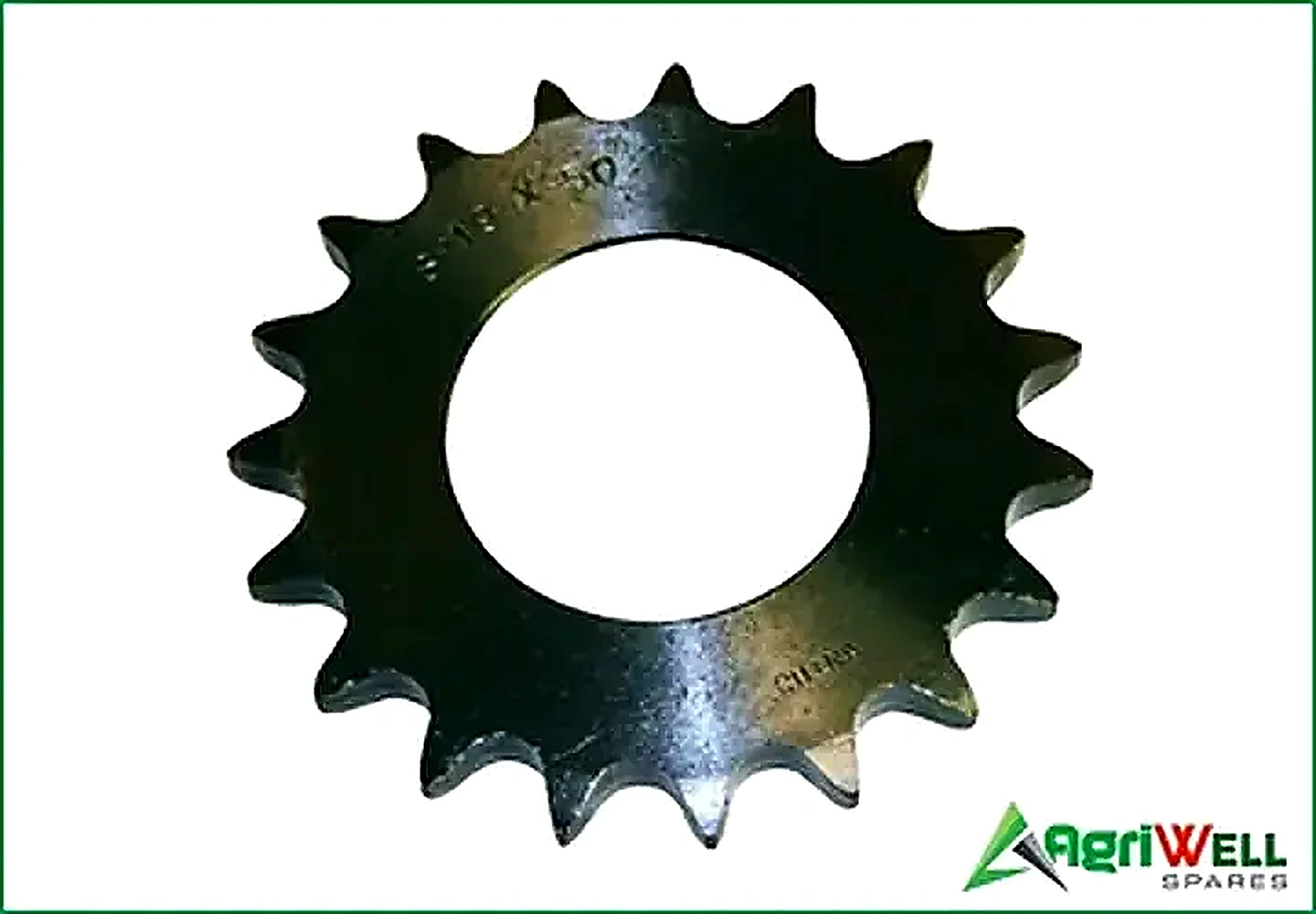

Product specifications 2

AgriWellPart No.	SKU NUMBER	PART NUMBER BULK	PART NUMBER BOX*	UPC ITEM NO. BULK BOX	NUMBER OF TEETH	OUTSIDE DIAM.	USE HUB SERIES	BULK WEIGHT (lbs.)
AWSK80510	80501000	HS805010	805010YAU (1)	80510 7	90201 1	10	2-1/4”	V	0.19
AWSK80511	80501100	HS805011	805011YAU (1)	80511 4	90202 8	11	2-1/2”	V	0.19
AWSK80512	80501200	HS805012	805012YAU (1)	80512 1	90203 5	12	2-3/4”	W	0.22
AWSK80513	80501300	HS805013	805013YAU (1)	80513 8	90204 2	13	2-7/8”	W	0.25
AWSK80514	80501400	HS805014	805014YAU (1)	80514 5	90205 9	14	3-1/16”	W	0.32
AWSK80515	80501500	HS805015	805015YAU (1)	80515 2	90206 6	15	3-1/4”	W	0.44
AWSK80516	80501600	HS805016	805016YAU (1)	80516 9	90207 3	16	3-7/16”	W	0.50
AWSK80517	80501700	HS805017	805017YAU (1)	80517 6	90208 0	17	3-11/16”	X	0.50
AWSK80518	80501800	HS805018	805018YAU (1)	80518 3	90209 7	18	3-7/8”	X	0.58
AWSK80519	80501900	HS805019	805019YAU (1)	80519 0	90210 3	19	4-1/8”	X	0.69
AWSK80520	80502000	HS805020	805020YAU (1)	80520 6	90211 0	20	4-3/8”	X	0.75
AWSK80521	80502100	HS805021	805021YAU (1)	80521 3	90212 7	21	4-9/16”	X	0.88
AWSK80522	80502200	HS805022	805022YAU (1)	80522 0	90213 4	22	4-3/4”	X	1.00
AWSK80523	80502300	HS805023	805023YAU (1)	80523 7	90214 1	23	4-15/16”	X	1.15
AWSK80524	80502400	HS805024	805024YAU (1)	80524 4	90215 8	24	5-1/8”	X	1.25
AWSK80525	80502500	HS805025	805025YAU (1)	80525 1	90216 5	25	5-3/8”	X	1.40
AWSK80526	80502600	HS805026	805026YAU (1)	80526 8	90217 2	26	5-1/2”	X	1.63
AWSK80527	80502700	HS805027	805027YAU (1)	80527 5	90218 9	27	5-11/16”	X	1.80
AWSK80528	80502800	HS805028	805028YAU (1)	80528 2	90219 6	28	5-7/8”	X	1.83
AWSK80529	80502900	HS805029	805029YAU (1)	80529 9	90220 2	29	6-1/8”	X	2.10
AWSK80530	80503000	HS805030	805030YAU (1)	80530 5	90221 9	30	6-5/16”	X	2.19
AWSK80531	80503100	HS805031	805031YAU (1)	80531 2	90222 6	31	6-1/2”	X	2.42
AWSK80532	80503200	HS805032	805032YAU (1)	80532 9	90223 3	32	6-3/4”	X	2.38
AWSK80533	80503300	HS805033	--	80533 6	--	33	6-7/8”	X	2.65
AWSK80534	80503400	HS805034	--	80534 3	--	34	7-1/16”	X	3.10
AWSK80535	80503500	HS805035	--	80535 0	--	35	7-1/4”	X	3.10
AWSK80536	80503600	HS805036	805036YAU (1)	80536 7	90227 1	36	7-9/16”	X	3.25
AWSK80537	80503700	HS805037	--	80537 4	--	37	7-11/16”	X	3.40
AWSK80538	80503800	HS805038	--	80538 1	--	38	7-15/16”	X	3.55
AWSK80539	80503900	HS805039	--	80539 8	--	39	8-1/8”	X	3.90
AWSK80540	80504000	HS805040	--	80540 4	--	40	8-5/16”	X	3.95
AWSK80541	80504100	HS805041	--	80541 1	--	41	8-1/2”	X	4.15
AWSK80542	80504200	HS805042	--	80542 8	--	42	8-11/16”	X	4.50
AWSK80543	80504300	HS805043	--	80543 5	--	43	8-7/8”	X	4.70
AWSK80544	80504400	HS805044	--	80544 2	--	44	9-1/16”	X	4.95
AWSK80545	80504500	HS805045	--	80545 9	--	45	9-5/16”	X	5.20
AWSK80548	80504800	HS805048	--	80548 0	--	48	9-7/8”	X	6.15
AWSK80550	80505000	HS805050	--	80550 3	--	50	10-1/4”	X	6.60
AWSK80554	80505400	HS805054	--	80554 1	--	54	11-1/16”	X	7.75
AWSK80560	80506000	HS805060	--	80560 2	--	60	12-5/16”	X	9.80
AWSK80572	80507200	HS805072	--	80572 5	--	72	14-5/8”	X	13.90
AWSK80580	80508000	HS805080	--	80580 0	--	80	16-1/4”	X	17.50
AWSK80596	80509600	HS805096	--	80596 1	--	96	19-7/16”	X	25.00
* Number in parenthesis indicates clamshell quantity.

Swipe horizontally to view all specifications →

Technical specifications

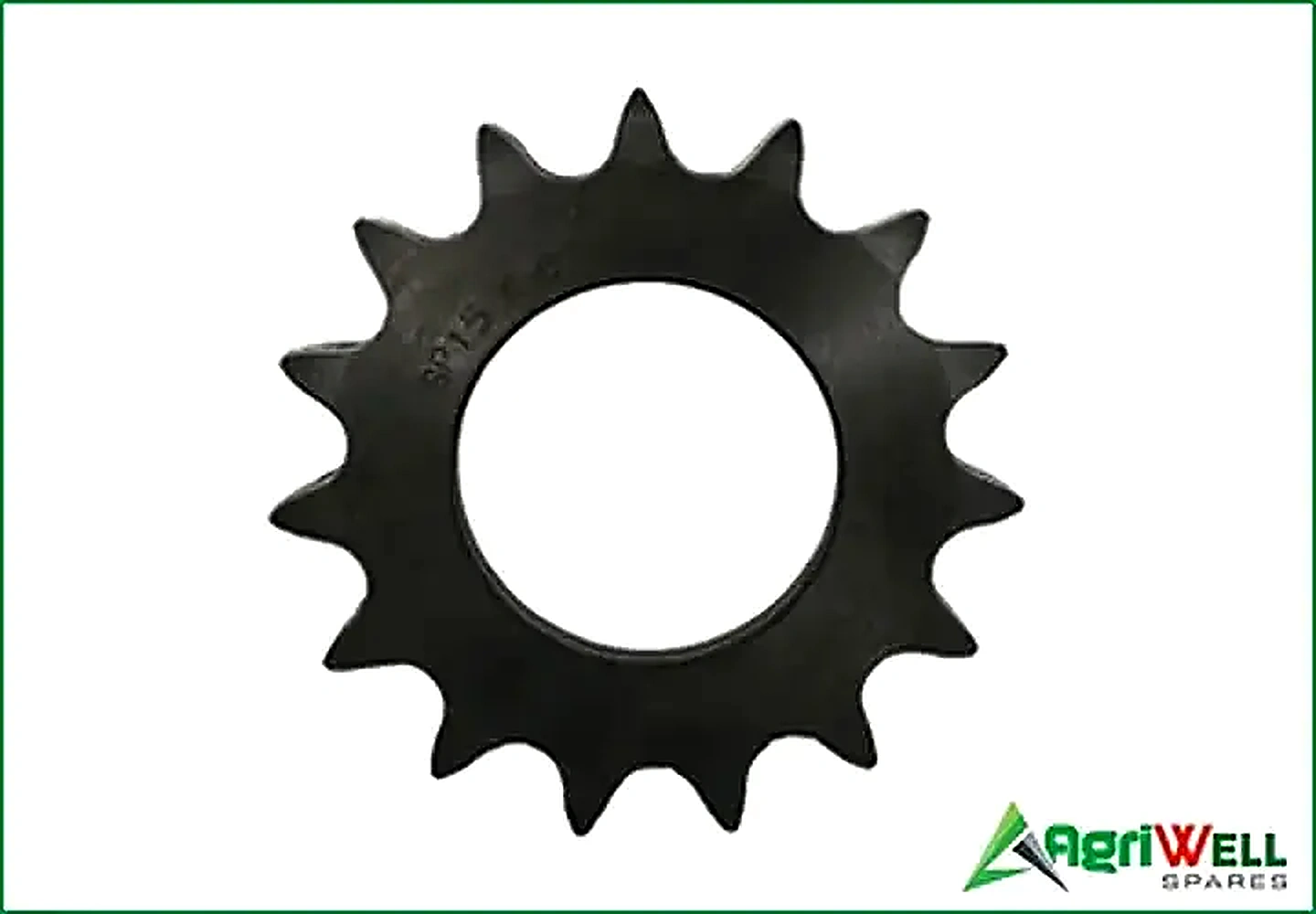

Product specifications 3

AgriWellPart No.	SKU NUMBER	PART NUMBER BULK	PART NUMBER BOX*	UPC ITEM NO. BULK BOX	NUMBER OF TEETH	OUTSIDE DIAM.	USE HUB SERIES	BULK WEIGHT (lbs.)
AWSK80609	80600900	HS806009	806009YAU (1)	80609 8	90250 9	9	2-1/2”	V	0.32
AWSK80610	80601000	HS806010	806010YAU (1)	80610 4	90251 6	10	2-3/4”	V	0.38
AWSK80611	80601100	HS806011	806011YAU (1)	80611 1	90252 3	11	3”	W	0.38
AWSK80612	80601200	HS806012	806012YAU (1)	80612 8	90253 0	12	3-1/4”	W	0.44
AWSK80613	80601300	HS806013	806013YAU (1)	80613 5	90254 7	13	3-1/2”	W	0.63
AWSK80614	80601400	HS806014	806014YAU (1)	80614 2	90255 4	14	3-3/4”	W	0.75
AWSK80615	80601500	HS806015	806015YAU (1)	80615 9	90256 1	15	4”	X	0.75
AWSK80616	80601600	HS806016	806016YAU (1)	80616 6	90257 8	16	4-1/4”	X	0.94
AWSK80617	80601700	HS806017	806017YAU (1)	80617 3	90258 5	17	4-1/2”	X	1.19
AWSK80618	80601800	HS806018	806018YAU (1)	80618 0	90259 2	18	4-11/16”	X	1.32
AWSK80619	80601900	HS806019	806019YAU (1)	80619 7	90260 8	19	5”	X	1.50
AWSK80620	80602000	HS806020	806020YAU (1)	80620 3	90261 5	20	5-1/8”	X	1.63
AWSK80621	80602100	HS806021	806021YAU (1)	80621 0	90262 2	21	5-1/2”	X	2.00
AWSK80622	80602200	HS806022	806022YAU (1)	80622 7	90263 9	22	5-11/16”	X	2.25
AWSK80623	80602300	HS806023	--	80623 4	--	23	5-15/16”	X	2.50
AWSK80624	80602400	HS806024	806024YAU (1)	80624 1	90265 3	24	6-1/8”	X	2.75
AWSK80625	80602500	HS806025	--	80625 8	--	25	6-3/8”	X	3.00
AWSK80626	80602600	HS806026	806026YAU (1)	80626 5	90267 7	26	6-5/8”	X	3.25
AWSK80627	80602700	HS806027	--	80627 2	--	27	6-7/8”	X	3.60
AWSK80628	80602800	HS806028	806028YAU (1)	80628 9	90269 1	28	7-1/8”	X	3.75
AWSK80629	80602900	HS806029	--	80629 6	--	29	7-3/8”	X	4.50
AWSK80630	80603000	HS806030	806030YAU (1)	80630 2	90271 4	30	7-5/8”	X	4.50
AWSK80631	80603100	HS806031	--	80631 9	--	31	7-3/4”	X	4.85
AWSK80632	80603200	HS806032	--	80632 6	--	32	8”	X	5.15
AWSK80633	80603300	HS806033	--	80633 3	--	33	8-5/16”	X	5.45
AWSK80634	80603400	HS806034	--	80634 0	--	34	8-9/16”	X	5.80
AWSK80635	80603500	HS806035	--	80635 7	--	35	8-3/4”	X	6.20
AWSK80636	80603600	HS806036	--	80636 4	--	36	9”	X	6.50
AWSK80638	80603800	HS806038	--	80638 8	--	38	9-7/8”	X	7.40
AWSK80640	80604000	HS806040	--	80640 1	--	40	9-15/16”	X	8.28
AWSK80642	80604200	HS806042	--	80642 5	--	42	10-1/2”	X	9.15
AWSK80645	80604500	HS806045	--	80645 6	--	45	11-3/16”	X	10.70
AWSK80648	80604800	HS806048	--	80648 7	--	48	11-7/8”	X	12.30
AWSK80654	80605400	HS806054	--	80654 8	--	54	13-1/4”	X	15.60
AWSK80660	80606000	HS806060	--	80660 9	--	60	14-3/4”	X	18.90
AWSK80672	80607200	HS806072	--	80672 2	--	72	17-5/8”	X	27.20
AWSK80680	80608000	HS806080	--	80680 7	--	80	19-1/2”	X	30.70
* Number in parenthesis indicates clamshell quantity.

Swipe horizontally to view all specifications →

Technical specifications

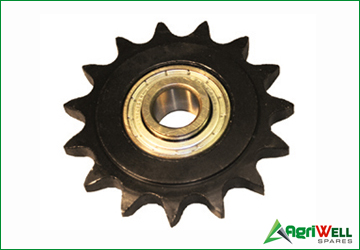

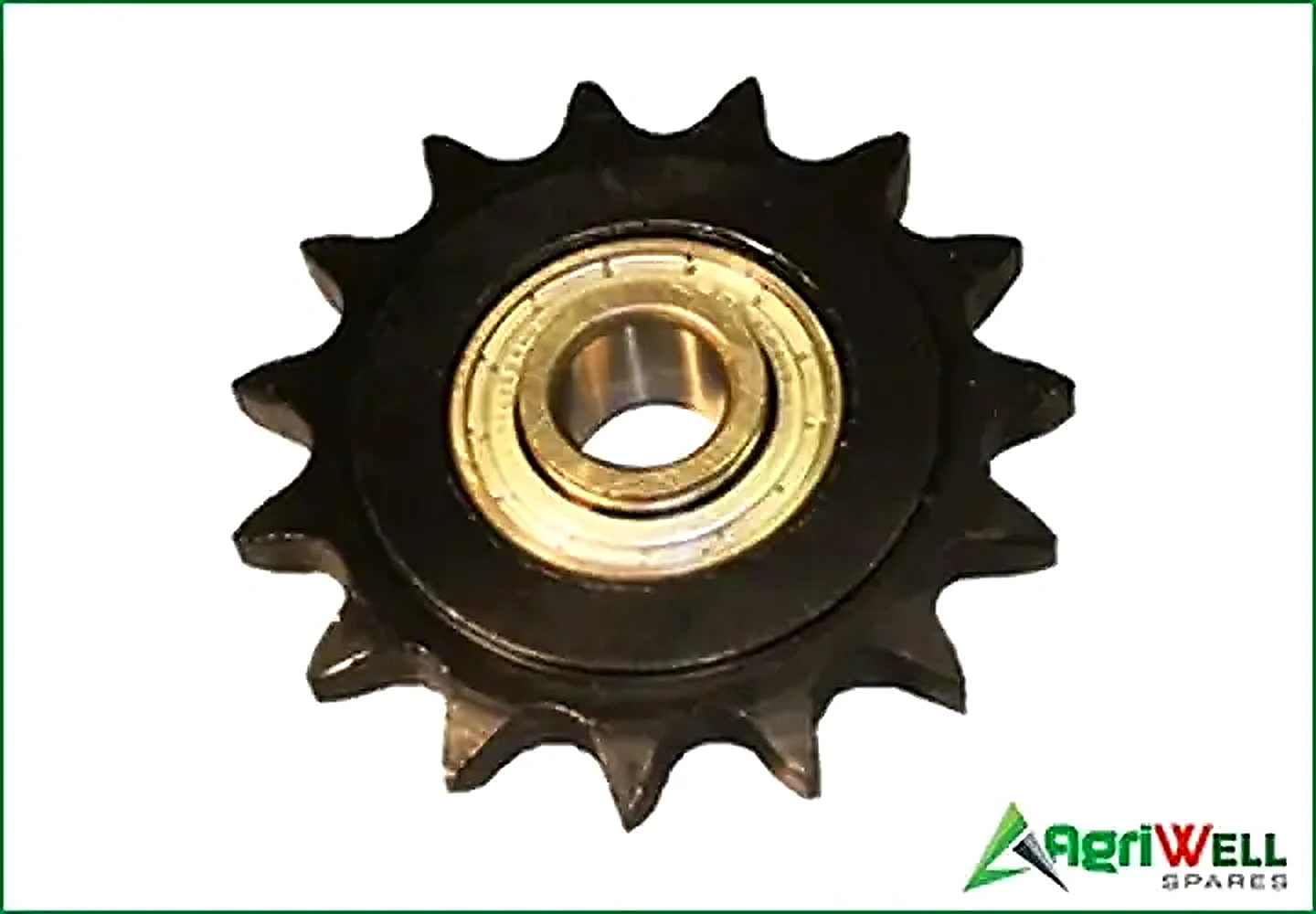

Product specifications 4

AgriWellPart No.	SKU NUMBER	PART NUMBER BULK	PART NUMBER BOX	UPC ITEM NUMBER BULK BOX	CHAIN SIZE	NUMBER OF TEETH	BORE SIZE	BULK WEIGHT(lbs.)
AWSK80901	80441700	HS804417	804417YAU (1)	80901 3	90301 8	40 or 41	17	1/2”	0.44
AWSK80902	80451700	HS804517	--	80902 0	--	40 or 41	17	5/8”	0.44
AWSK80903	80541300	HS805413	--	80903 7	--	50	13	1/2”	0.38
AWSK80904	80551300	HS805513	--	80904 4	--	50	13	5/8”	0.38
AWSK80905	80541500	HS805415	805415YAU (1)	80905 1	90305 6	50	15	1/2”	0.56
AWSK80906	80551500	HS805515	805515YAU (1)	80906 8	90306 3	50	15	5/8”	0.5
AWSK80907	80541700	HS805417	--	80907 5	--	50	17	1/2”	0.69
AWSK80908	80551700	HS805517	--	80908 2	--	50	17	5/8”	0.63
AWSK80909	80641100	HS806411	--	80909 9	--	60	11	1/2”	0.5
AWSK80910	80651100	HS806511	--	80910 5	--	60	11	5/8”	0.5
AWSK80913	80641300	HS806413	--	80913 6	--	60	13	1/2”	0.69
AWSK80911	80651300	HS806513	806513YAU (1)	80911 2	90312 4	60	13	5/8”	0.69

Swipe horizontally to view all specifications →
