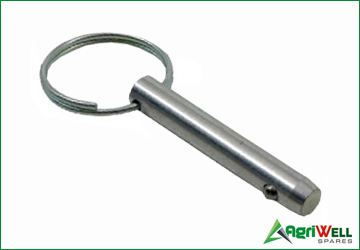

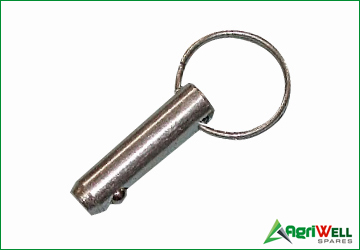

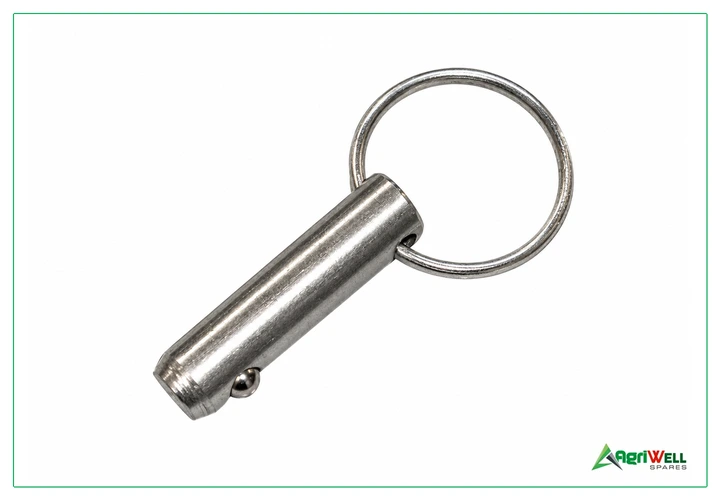

DETENT PINS
Precision agricultural component
DETENT PINS
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications
| AgriWellPart No. | ReferenceNumber | Popular Code | Pin Dia ØA (Inches) | Usable Length B (Inches) | Overall length C (Inches) | Package Qty. | Bulk Weight (lbs.) |
|---|---|---|---|---|---|---|---|
| AWDTP202E | SPC71202E | P71202 | 3/16" | 1 | 1-3/8" | 5 | 0.2 |
| AWDTP204E | SPC71204E | P71204 | 3/16" | 1-1/2" | 1-7/8" | 5 | 0.3 |
| AWDTP206E | SPC71206E | P71206 | 3/16" | 1 | 2-3/8" | 5 | 0.4 |
| AWDTP207E | SPC71208E | P71208 | 3/16" | 1 | 3-38/" | 5 | 0.5 |
| AWDTP212E | SPC71212E | P71212 | 1/4" | 1 | 1-7/16" | 5 | 0.4 |
| AWDTP214E | SPC71214E | P71214 | 1/4" | 1-1/2" | 1-15/16" | 5 | 0.6 |
| AWDTP216E | SPC71216E | P71216 | 1/4" | 1 | 2-7/16" | 5 | 0.6 |
| AWDTP218E | SPC71218E | P71218 | 1/4" | 2-1/2" | 2-15/16" | 5 | 0.7 |
| AWDTP220E | SPC71220E | P71220 | 1/4" | 1 | 3-7/16" | 5 | 0.9 |
| AWDTP222E | SPC71222E | P71222 | 1/4" | 1 | 4-7/16" | 5 | 1.6 |
| AWDTP224E | SPC71224E | P71224 | 1/4" | 1 | 5-7/16" | 5 | 1.3 |
| AWDTP227E | SPC71227E | P71227 | 5/16" | 1 | 1-17/32" | 5 | 0.6 |
| AWDTP229E | SPC71229E | P71229 | 5/16" | 1-1/2" | 2-1/32" | 5 | 0.8 |
| AWDTP231E | SPC71231E | P71231 | 5/16" | 1 | 2-17/32" | 5 | 1.0 |
| AWDTP233E | SPC71233E | P71233 | 5/16" | 2-1/2" | 3-1/32" | 5 | 1.2 |
| AWDTP234E | SPC71234E | P71234 | 5/16" | 1 | 3-17/32" | 5 | 1.3 |
| AWDTP236E | SPC71236E | P71236 | 5/16" | 3-1/2" | 4-1/32" | 5 | 1.4 |
| AWDTP237E | SPC71237E | P71237 | 5/16" | 1 | 4-17/32" | 5 | 1.6 |
| AWDTP239E | SPC71239E | P71239 | 5/16" | 1 | 5-17/32" | 5 | 2.0 |
| AWDTP246E | SPC71246E | P71246 | 3/8" | 1 | 1-5/8" | 5 | 1.0 |
| AWDTP248E | SPC71248E | P71248 | 3/8" | 1-1/2" | 2-1/8" | 5 | 1.1 |
| AWDTP250E | SPC71250E | P71250 | 3/8" | 1 | 2-5/8" | 5 | 1.4 |
| AWDTP252E | SPC71252E | P71252 | 3/8" | 2-1/2" | 3-1/8" | 5 | 1.7 |
| AWDTP253E | SPC71253E | P71253 | 3/8" | 1 | 3-5/8" | 5 | 1.9 |
| AWDTP255E | SPC71255E | P71255 | 3/8" | 3-1/2" | 4-1/8" | 5 | 2.2 |
| AWDTP257E | SPC71257E | P71257 | 3/8" | 1 | 4-5/8" | 5 | 2.5 |
| AWDTP265E | SPC71265E | P71265 | 7/16" | 1 | 3-7/32" | 5 | 1.9 |
| AWDTP267E | SPC71267E | P71267 | 7/16" | 2-1/2" | 3-7/32" | 5 | 2.2 |
| AWDTP269E | SPC71269E | P71269 | 7/16" | 1 | 3-23/32" | 5 | 2.6 |
| AWDTP271E | SPC71271E | P71271 | 7/16" | 1 | 4-23/32" | 5 | 3.3 |
| AWDTP273E | SPC71273E | P71273 | 7/16" | 1 | 5-23/32" | 5 | 4.0 |
| AWDTP280E | SPC71280E | P71280 | 1/2" | 1 | 1-25/32" | 5 | 1.7 |
| AWDTP281E | SPC71281E | P71281 | 1/2" | 1-1/2" | 2-9/32" | 5 | 2.2 |
| AWDTP282E | SPC71282E | P71282 | 1/2" | 1 | 2-25/32" | 5 | 2.5 |
| AWDTP283E | SPC71283E | P71283 | 1/2" | 2-1/2" | 3-9/32" | 5 | 3.2 |
| AWDTP284E | SPC71284E | P71284 | 1/2" | 1 | 3-25/32" | 5 | 3.4 |
| AWDTP286E | SPC71286E | P71286 | 1/2" | 1 | 4-25/32" | 5 | 4.4 |
