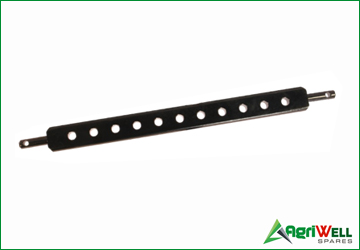

DRAW BAR

Current product rangeEuropean Products Range

Precision agricultural component

DRAW BAR

Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.

Discuss this product →

Technical specifications

Product specifications

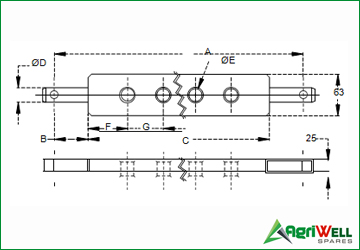

Part Number	No. of Holes	Dim. T (mm)	Dim. W (mm)	Dim. A (mm)	Dim. B (mm)	Dim. C (mm)	Dia. ØD (mm)	Dia. ØE (mm)	Dim. F (mm)	Dim. G (mm)	Ref. Number
DB-3276640	7	32	76	750	55	640	28	25.5	80	80
DB-3276660	9	32	76	800	70	660	28	28.4	70	65
DB-3276684	6	32	76	800	58	684	28.4	20	104.5	95
DB-3276715	11	32	76	825	55	715	28	22	87.5	65
DB-3276740	5	32	76	861	60.5	740	28.4	27	140	115
DB-3276762	7	32	76	890	64	762	28	29	126	85
DB-3276776	7	32	76	876	50	776	28	28	100	96
DB-3276780	7	32	76	890	55	780	28	28	124	88.6
DB-3276800	9	32	76	910	55	800	28	25.5	80	80
DB-3276807	7	32	76	932	62	807	28	26	49.5	86.2
DB-3276812	11	32	76	932	60	812	28	28	86	64
DB-3276813	11	32	76	933	60	813	28	28.5	81.5	65
DB-3276820	7	32	76	930	55	820	28	28	110	100
DB-3276823	11	32	76	933	55	823	28	22	86.5	65
DB-3276825	7	32	76	925	50	825	28.4	25	172.5	80
DB-3276830	7	32	76	940	55	830	28	26	85	110
DB-3276836	11	32	76	960	62	836	28	28	78	68
DB-3276850	11	32	76	960	55	850	28	26	100	65
DB-3276860	9	32	76	962	51	860	28.5	33	110	80
DB-3276861	7	32	76	981	60	861	28.4	28.5	154.5	92
DB-3276870	9	32	76	980	55	870	28	25.5	87	87
DB-3375780	7	33	75	888	55	780	28	28.5	90	100	00031
DB-4080658	3	40	80	770	56	658	28.5	26.5	164.5	164.5
DB-4080742	7	40	80	862	60	742	28.5	26	122	83
DB-4080764	6	40	80	890	63	764	28	28	132	100
DB-4080820	7	40	80	930	55	820	28	28.5	102.5	102.5	00045
DB-4080850	3	40	80	960	55	850	28	28.5	212.5	141.5
DB-4080880	5	40	80	1000	60	880	28	28	160	140
DB-4080964	5	40	80	1084	60	964	28.5	26	202	140
DB-4080965	7	40	80	1085	60	965	36	33	152.5	110
DB-4590964	7	45	90	1094	65	964	36	16	152	110

Swipe horizontally to view all specifications →
