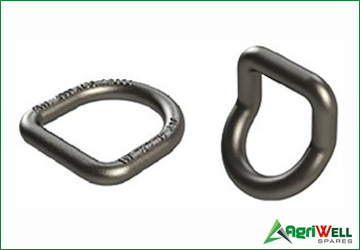

D-RING
Precision agricultural component
D-RING
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications
| AgriWellPart No. | Model | Dim. ØA (Inches) | Dim. B (Inches) | Dim. C (Inches) | Clip Style | Max. Capacity S.W.L. | M.B.S. | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| AWSDRING01 | 3/8" D-Ring | 3/8” | 2-5/8” | 2” | A | 3,000 | – | 0.50 |
| AWSDRING02 | ½”D-Ring | ½” | 2-1/4” | 2-1/2” | A or B | 4,000 | 12,000 | 1.00 |
| AWSDRING03 | 5/8" D-Ring | 5/8" | 3” | 3” | A or B | 6,000 | 19,000 | 2.00 |
| AWSDRING04 | 5/8" D-Ring | 5/8” | 2-3/4” | 3-1/2” | A or B | 6,000 | 19,000 | 2.25 |
| AWSDRING05 | 3/4" D-Ring | 3/4” | 3” | 3” | A | 9,000 | 27,000 | 4.25 |
| AWSDRING06 | 1" D-Ring | 1” | 3” | 3” | A or B | 15,000 | 47,000 | 4.50 |
| AWSDRING07 | 1" D-Ring | 1” | 3” | 4” | A or B | 15,000 | 47,000 | 5.00 |
| AWSDRING08 | 1" D-Ring Bent at 50 | 1” | 5” | 6” | – | 15,000 | 47,000 | 5.00 |
Swipe horizontally to view all specifications →
Technical specifications

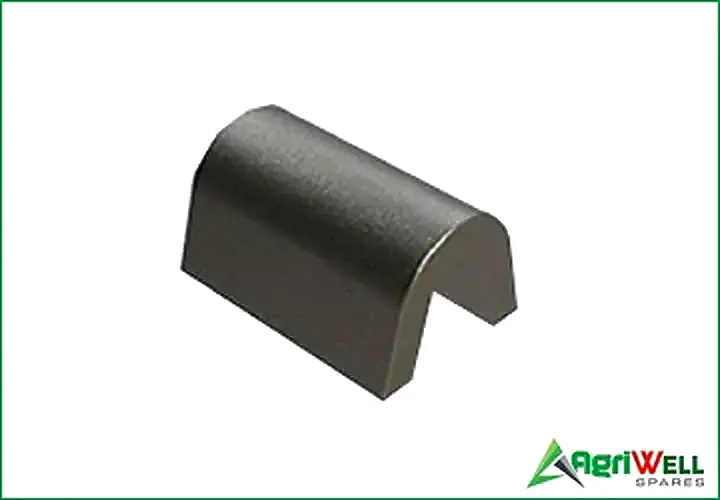

Product specifications 2
| AgriWellPart No. | Dim. A (Inches) | Dim. B (Inches) | Dim. C (Inches) | Dim. D (Inches) | Weight (lbs) |
|---|---|---|---|---|---|
| AWSCLIP01F | 1-1/8” | 2” | 3/8” | 3/8” | 1.00 |
| AWSCLIP02F | 1-1/8” | 2-1/4” | 1-1/8” | 1/2” | 1.10 |
| AWSCLIP03F | 3/4” | 1-7/8” | 3/4” | 3/8” | 0.66 |
| AWSCLIP04F | 7/8” | 1-7/8” | 7/8” | 3/8” | 0.60 |
Swipe horizontally to view all specifications →
