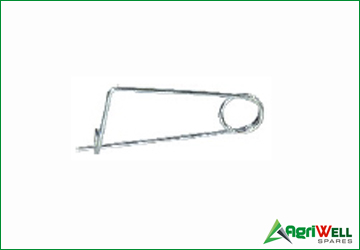

SAFETY PINS
Precision agricultural component
SAFETY PINS
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications

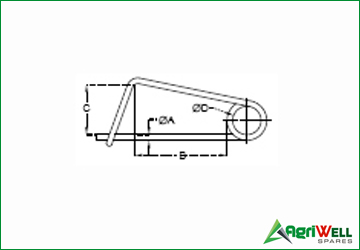

| AgriWellPart No. | Popular Code | Wire Dia ØA (mm) | Dim B (mm) | Dim C (mm) | Dia ØD (mm) |
|---|---|---|---|---|---|
| AWSSP-360 | 00122 | 3 | 60 | 35 | 20 |
| AWSSP-4100 | 00107 | 4 | 100 | 55 | 33 |
| AWSSP-590 | 00108 | 5 | 90 | 42 | 31 |
| AWSSP-6100 | 00109 | 6 | 100 | 50 | 30 |
