WELD ON HUBS

Current product rangeAgriculture Machinery Parts

Precision agricultural component

WELD ON HUBS

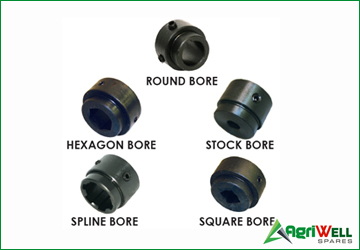

High quality, precision-machined V, W, and X series weld-on hubs. Available in round, spline, square, stock, and hexagon bores.

Discuss this product →

Technical specifications

Product specifications

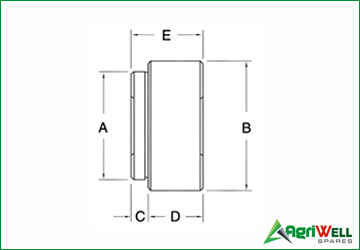

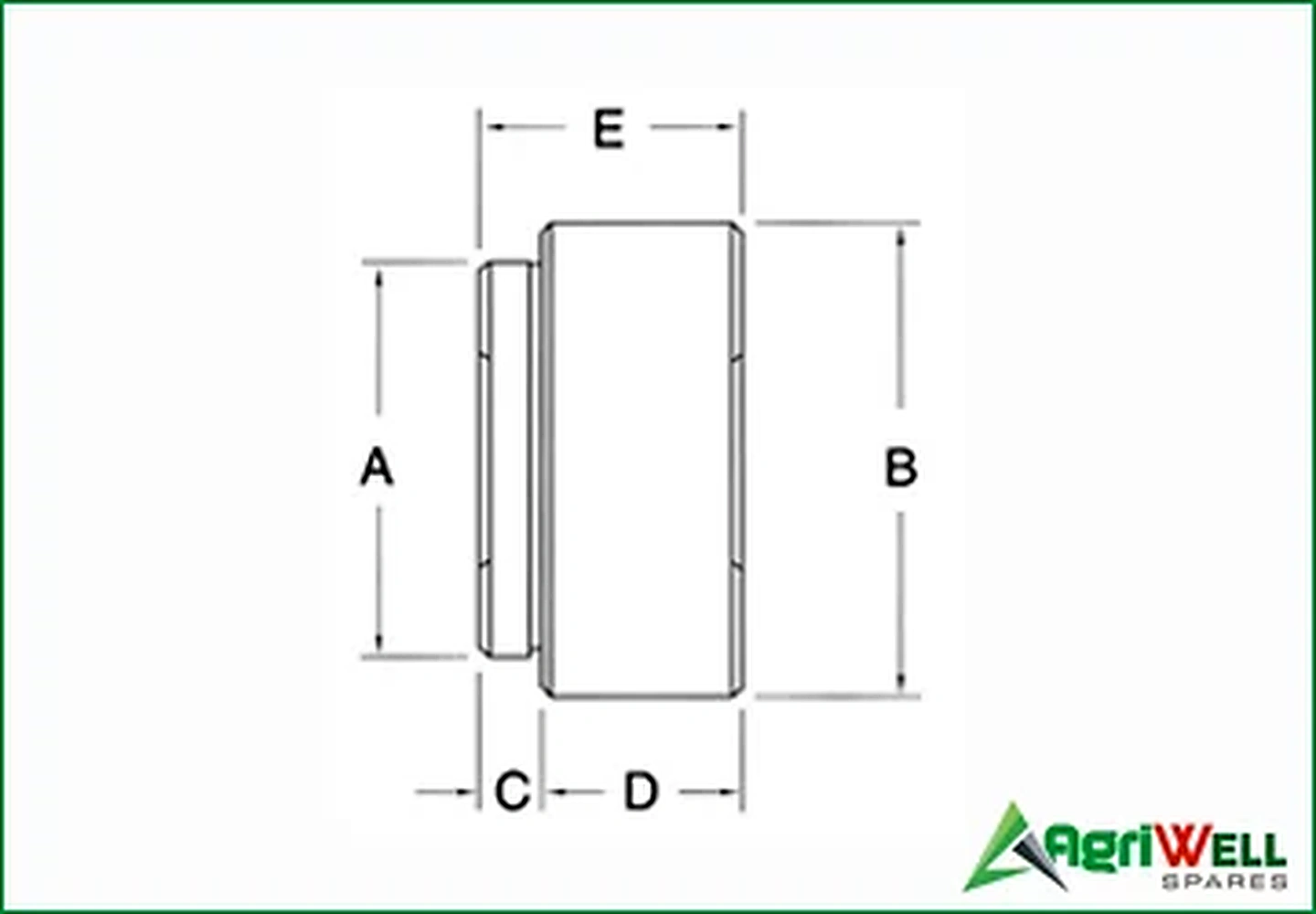

	A	B	C	D	E
V-SERIES HUBS To Fit V Type Sprockets	1-1/8”	1-7/16”	7/16”	3/4”	1-3/16”
W-SERIES HUBS To Fit W Type Sprockets	1-5/8”	1-13/16”	7/16”	1”	1-7/16”
X-SERIES HUBS To Fit X Type Sprockets	2”	2-1/2”	7/16”	1”	1-7/16”

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 2

SKU NUMBER	PART NUMBER	UPC ITEM NO. 0-87196-	BORE SIZE	BOX NO. * UPC NO.	BULK WEIGHT (lbs.)
80010300	HS800103	80103 1	1/2”	--	0.38
80010400	HS800104	80104 8	9/16”	--	0.38
80010500	HS800105	80105 5	5/8”	800105YAU (1)	0.38
90403 9
80010700	HS800107	80107 9	3/4”	800107YAU (1)	0.32
90405 3
80010900	HS800109	80109 3	7/8”	800109YAU (1)	0.25
* Number in parenthesis indicates clamshell quantity.	90407 7

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 3

SKU NUMBER	PART NUMBER	UPC ITEM NO. 0-87196-	BORE SIZE	BOX NO. * UPC NO.	BULK WEIGHT (lbs.)
HEXAGON BORE WITH SET SCREW
80023000	HS800230	80103 1	7/8”	--	0.70
80023100	HS800231	80231 1	1"	--	0.52
SPLINE BORE WITH SET SCREW
80023500	HS800235	80235 9	1-1/8” x 6	800235YAU (1)	0.63
90428 2
80023700	HS800237	80237 3	1-3/8” x 6	800237YAU (1)	0.44
* Number in parenthesis indicates clamshell quantity.	90429 9

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 4

SKU NUMBER	PART NUMBER	UPC ITEM NO. 0-87196-	BORE SIZE	BOX NO.* UPC NO.	WEIGHT (lbs.)
80020300	HS800203	80203 8	1/2”	800203YAU (1)	0.88
90412 1
80020400	HS800204	80204 5	9/16”	800204YAU (1)	0.88
90413 8
80020500	HS800205	80205 2	5/8”	800205YAU (1)	0.83
90414 5
80020600	HS800206	80206 9	11/16”	800206YAU (1)	0.83
90415 2
80020700	HS800207	80207 6	3/4”	800207YAU (1)	0.83
90416 9
80020800	HS800208	80208 3	13/16”	800208YAU (1)	0.75
90417 6
80020900	HS800209	80209 0	7/8”	800209YAU (1)	0.75
90418 3
80021000	HS800210	80210 6	15/16”	800210YAU (1)	0.69
90419 0
80021100	HS800211	80211 3	1”	800211YAU (1)	0.63
90420 6
80021200	HS800212	80212 0	1-1/16”	800212YAU (1)	0.63
90421 3
80021300	HS800213	80213 7	1-1/8”	800213YAU (1)	0.57
90422 0
80021400	HS800214	80214 4	1-3/16”	800214YAU (1)	0.50
90423 7
80021500	HS800215	80215 4	1-1/4”	800214YAU (1)	0.40

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 5

SKU NUMBER	PART NUMBER	UPC ITEM NO. 0-87196-	BORE SIZE	BULK WEIGHT (lbs.)
STOCK BORE
80022500	HS800225	80225 0	1/2"	0.90
SQUARE BORE WITH SET SCREW
80022600	HS800226	80226 7	3/4"	0.76

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 6

SKU NUMBER	PART NUMBER	UPC ITEM NO. 0-87196-	BORE SIZE	BOX NO.* UPC NO.	BULK WEIGHT (lbs.)
800305YAU(1)
80030500	HS800305	80305 9	5/8"	1.65
	90440 4
80030600	HS800306	80306 6	11/16”	800306YAU (1)	1.65
	90441 1
80030700	HS800307	80307 3	3/4”	800307YAU (1)	1.60
90442 8
80030800	HS800308	80308 0	13/16”	800308YAU (1)	1.60
90443 5
80030900	HS800309	80309 7	7/8”	800309YAU (1)	1.52
	90444 2
80031000	HS800310	80310 3	15/16”	800310YAU (1)	1.38
	90445 9
80031100	HS800311	80311 0	1”	800311YAU (1)	1.38
	90446 6
80031200	HS800312	80312 7	1-1/16”	800312YAU (1)	1.38
	90447 3
80031300	HS800313	80313 4	1-1/8”	800313YAU (1)	1.38
90448 0
80031400	HS800314	80314 1	1-3/16”	800314YAU (1)	1.25
	90449 7
80031500	HS800315	80315 8	1-1/4”	800315YAU (1)	1.25
	90450 3
80031600	HS800316	80316 5	1-5/16”	800316YAU (1)	1.19
	90451 0
80031700	HS800317	80317 2	1-3/8”	800317YAU (1)	1.13
90452 7
80031800	HS800318	80318 9	1-7/16”	800318YAU (1)	1.13
	90453 4
80031900	HS800319	80319 6	1-1/2”	800319YAU (1)	1.06
	90454 1

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 7

SKU NUMBER	PART NUMBER	UPC ITEM NO. 0-87196-	BORE SIZE	BOX NO.* UPC NO.	BULK WEIGHT(lbs.)
HEXAGON BORE WITH SET SCREW
80032700	HS800327	80327 1	7/8”	--	1.50
80032800	HS800328	80328 8	1”	--	1.30
80032900	HS800329	80329 5	1-1/8”	--	1.30
SPLINE BORE WITH SET SCREW
80033500	HS800335	80335 6	1-1/8” x 6	800335YAU (1)90465 7	1.38
80033600	HS800336	80336 3	1-3/8” x 21	--	1.20
80033700	HS800337	80337 0	1-3/8” x 6	800337YAU (1)90467 1	1.20
* Number in parenthesis indicates clamshell quantity.

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 8

SKU NUMBER	PART NUMBER	UPC ITEM NO. 0-87196-	BORE SIZE	WEIGHT (lbs.)
STOCK BORE
80033100	HS800331	80331 8	5/8”	1.80
SQUARE BORE WITH SET SCREW
80032200	HS800322	80322 6	7/8”	1.40
80032400	HS800324	80324 0	1-1/8”	1.20

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 9

SKU NUMBER	PART NUMBER	UPC ITEM NO. 0-87196-	HUB SERIES	BORE SIZE	WEIGHT(lbs.)
80025000	HS800250	80250 2	W	5/8” & 1/2”	0.30
80035000	HS800350	80350 9	X	5/8” & 1/2”	0.40

Swipe horizontally to view all specifications →
