HITCH BALLS
Precision agricultural component
HITCH BALLS
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications

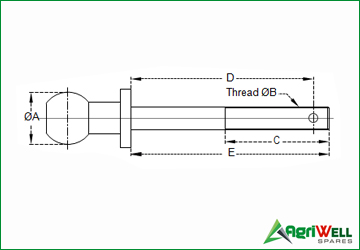

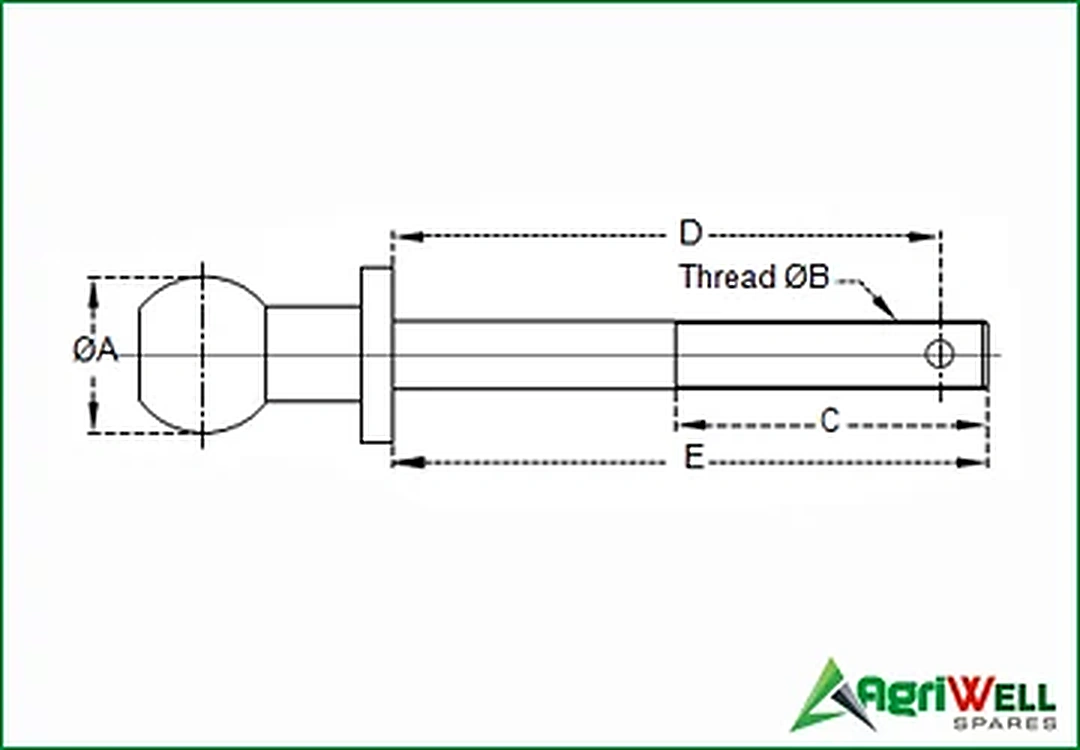

| Part Number | Dia. ØA (mm) | Thread Dia. ØB (inches) | Dim. C (mm) | Dim. D (mm) | Dim. E (mm) | Ref. Number |
|---|---|---|---|---|---|---|
| HBL-78162 | 50 | 7/8" | 100 | 162 | 190 | S-3210 |
| HBP-1162 | 50 | 1" | 100 | 162 | 190 | S-3211 |
Swipe horizontally to view all specifications →
Technical specifications
Product specifications 2

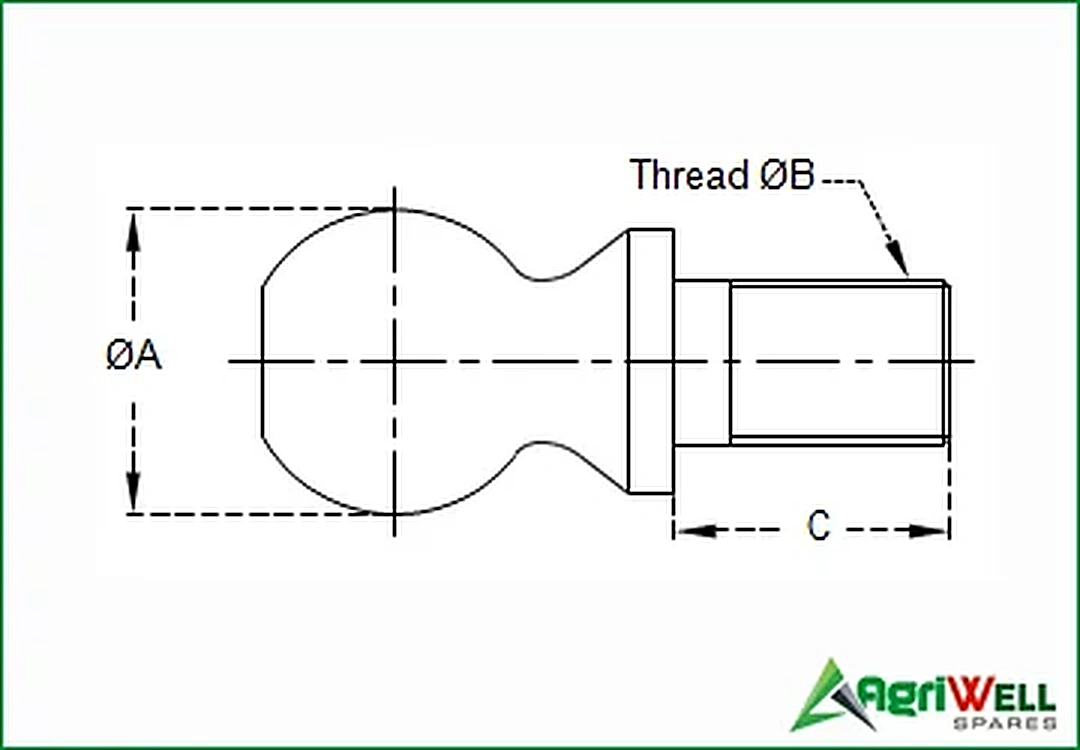

| Part Number | Dia. ØA (mm) | Thread Dia. ØB (inches) | Dim. C (mm) | Max. Load (Kg.) | Ref. Number |
|---|---|---|---|---|---|
| HB-344754 | 47.8 | 3/4" 16UNF | 54 | 900 | 5101 |
| HB-345054 | 50.8 | 3/4" 16UNF | 54 | 1600 | 5201 |
| HB-15054 | 50.8 | 1" 12UNF | 54 | 2300 | 5301 |
| HB-1145854 | 58.68 | 1-1/4" 12UNF | 54 | 3400 | 5501 |
Swipe horizontally to view all specifications →
Technical specifications
Product specifications 3

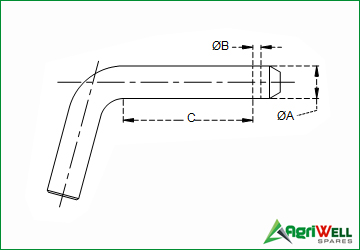

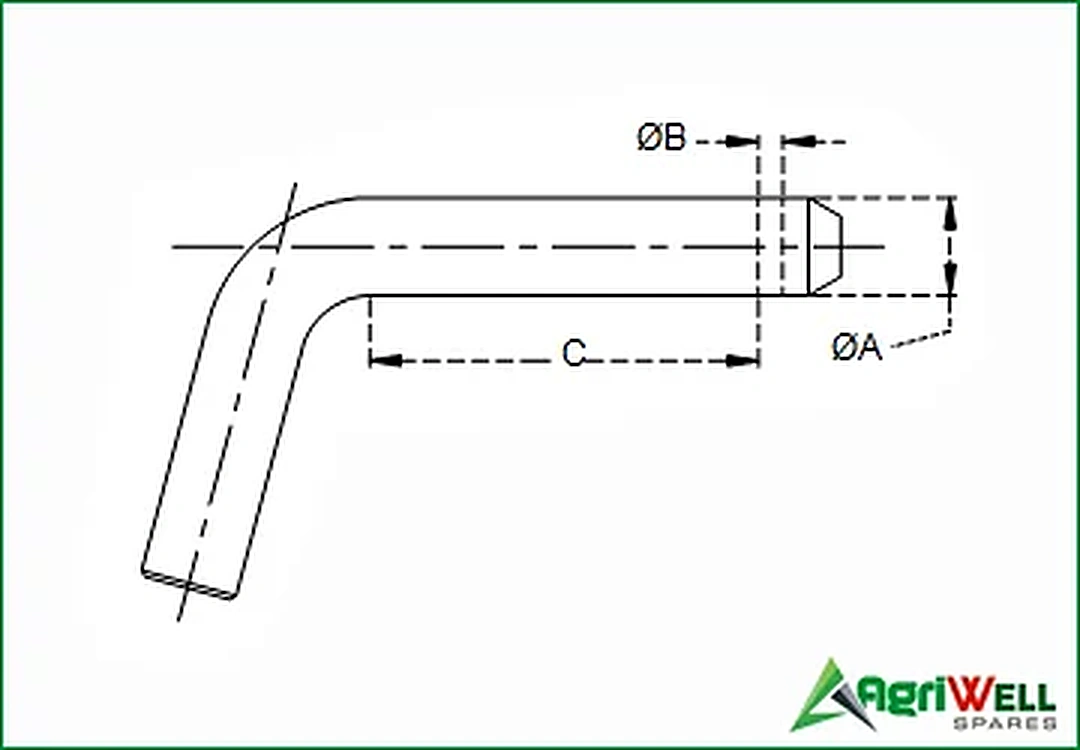

| Part Number | Dia. ØA (mm) | Thread Dia. ØB (mm) | Dim. C (mm) | Dim. D (mm) | Max. Load (Kg.) | Ref. Number |
|---|---|---|---|---|---|---|
| HB-22155053 | 50 | M 22X1.5 | 53 | 125 | 3500 | 11776 |
Swipe horizontally to view all specifications →
