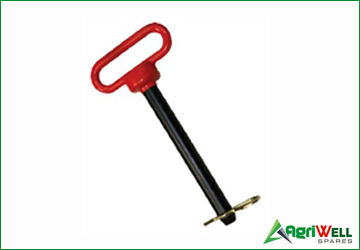

HITCH PIN RED HANDLE (GRADE 5)
Precision agricultural component
HITCH PIN RED HANDLE (GRADE 5)
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications

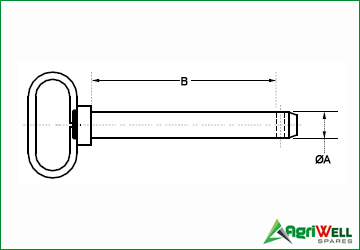

| AgriWellPart No. | ReferenceNumber | Popular Code | Pin Dia ØA (Inches) | Usable Length B (Inches) | Overall length C (Inches) | Package Qty. | Weight (lbs.) |
|---|---|---|---|---|---|---|---|
| AWHPR9350 | 87299350 | P700511 | 1/2" | 3-5/8" | 6-5/8" | 1 | 0.7 |
| AWHPR9351 | 87299351 | P700521 | 5/8" | 4" | 7" | 1 | 0.9 |
| AWHPR9352 | 87299352 | P700522 | 5/8" | 5-3/4" | 9" | 1 | 1.1 |
| AWHPR9354 | 87299354 | P700531 | 3/4" | 4" | 7" | 1 | 1.1 |
| AWHPR9356 | 87299356 | P700532 | 3/4" | 6-1/2" | 9-1/2" | 1 | 1.5 |
| AWHPR9358 | 87299358 | P700541 | 7/8" | 4-1/4" | 7-1/4" | 1 | 1.4 |
| AWHPR9359 | 87299359 | P700542 | 7/8" | 6-1/2" | 9-1/2" | 1 | 1.9 |
| AWHPR9361 | 87299361 | P700551 | 1" | 4-3/4" | 7-3/4" | 1 | 1.9 |
| AWHPR9362 | 87299362 | P700552 | 1" | 7-1/2" | 10" | 1 | 2.6 |
| AWHPR9364 | 87299364 | P700562 | 1-1/8" | 8-1/2" | 11-1/2" | 1 | 3.3 |
| AWHPR9366 | 87299366 | P700572 | 1-1/4" | 8-1/2" | 11-1/2" | 1 | 4.1 |
| AWHPR9367 | 87299367 | P700582 | 1-1/2" | 8-1/2" | 11-1/2" | 1 | 5.0 |
| AWHPR9368 | 87299368 | B96501 | 1-3/4" | 8-1/2" | 12" | 1 | 5.5 |
| AWHPR9369 | 87299369 | B96502 | 2" | 8-1/2" | 12" | 1 | 5.9 |
| AWHPR9370 | 87299370 | – | 1" | 12" | 15" | 1 | 3.5 |
| AWHPR9371 | 87299371 | – | 1-1/4" | 12" | 15" | 1 | 6.6 |
| AWHPR9372 | 87299372 | – | 1-1/2" | 13" | 16" | 1 | 7.7 |
