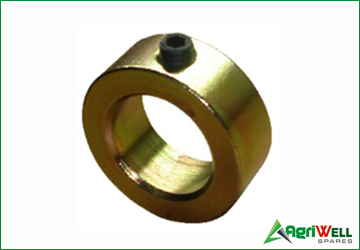

SHAFT SET COLLARS
Precision agricultural component
SHAFT SET COLLARS
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications

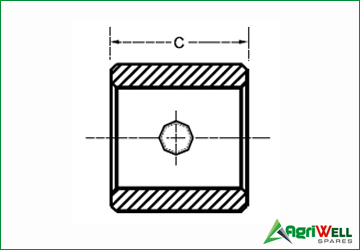

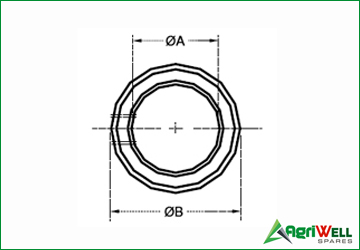

| AgriWellPart No. | ReferenceNumber | Popular Code | Bore Dia ØA (Inches) | Outside Dia ØB (Inches) | Width C (Inches) | Set Screw Size | Package Qty. | Bulk Weight (lbs.) |
|---|---|---|---|---|---|---|---|---|
| AWHCP6801 | LC16801FE | LC1681 | 1/4n | 1/2n | 9/32n | 10-32 x 1/8 | 5 | 0.3 |
| AWHCP6802 | LC16802FE | LC1682 | 5/16n | 5/8n | 11/32n | 10-32 x 1/8 | 5 | 0.3 |
| AWHCP6803 | LC16803FE | LC1683 | 3/8n | 3/4n | 3/8n | 1/4-20 x 3/16 | 5 | 0.6 |
| AWHCP6804 | LC16804F | LC1684 | 7/16n | 7/8n | 7/16n | 1/4-20 x 1/4 | 5 | 0.8 |
| AWHCP6805 | LC16805FE | LC1685 | 1/2n | 1n | 1/2n | 1/4-20 x 1/4 | 5 | 1.3 |
| AWHCP6806 | — | LC1686 | 9/16” | 1-1/8n | 9/16n | 1/4-20 x 1/4 | 5 | 1.9 |
| AWHCP6807 | LC16807FE | LC1687 | 5/8n | 1-1/8n | 9/16n | 5/16-18 x 1/4 | 5 | 1.9 |
| AWHCP6808 | LC16808FE | LC1688 | 11/16n | 1-3/8n | 5/8n | 5/16-18 x 1/4 | 5 | 3.2 |
| AWHCP6809 | LC16809FE | LC1689 | 3/4n | 1-3/8n | 5/8n | 5/16-18 x 1/4 | 5 | 2.9 |
| AWHCP6811 | LC16811FE | LC16811 | 7/8n | 1-1/2n | 5/8n | 5/16-18 x 5/16 | 5 | 3.2 |
| AWHCP6812 | LC16812FE | LC16812 | 15/16n | 1-5/8n | 5/8n | 5/16-18 x 5/16 | 5 | 3.8 |
| AWHCP6813 | LC16813FE | LC16813 | 1n | 1-5/8n | 5/8n | 5/16-18 x 5/16 | 5 | 3.5 |
| AWHCP6815 | LC16815FE | LC16815 | 1-1/8n | 1-3/4n | 5/8n | 5/16-18 x 5/16 | 5 | 3.8 |
| AWHCP6816 | LC16816FE | LC16816 | 1-3/16n | 2n | 11/16n | 3/8-16 x 3/8 | 5 | 5.8 |
| AWHCP6817 | LC16817FE | LC16817 | 1-1/4n | 2n | 11/16n | 3/8-16 x 3/8 | 5 | 5.7 |
| AWHCP6819 | LC16819FE | LC16819 | 1-3/8n | 2-1/8n | 3/4n | 3/8-16 x 3/8 | 5 | 6.7 |
| AWHCP6821 | LC16821FE | LC16821 | 1-1/2n | 2-1/4n | 3/4n | 3/8-16 x 3/8 | 5 | 7.4 |
| AWHCP6823 | LC16823FE | LC16823 | 1-3/4n | 2-3/4n | 7/8n | 1/2-13 x 1/2 | 5 | 12.2 |
| AWHCP6826 | — | LC16826 | 2” | 3” | 7/8n | 1/2-13 x 1/2 | 5 | 14.4 |
